Quick Details
Processing:Other
Condition:New
Place of Origin:Shandong, China
Certification:API
Warranty:1 YEAR
After-sales Service Provided:Free spare parts
Usage:Wine Making
Name:Copper Distillation
Material:SUS304/SUS316/red Copper
Keyword:Distilling Equipment
Spirits:Brandy Gin Vodka Whisky Rum
Product name:Home Stainless Steel Alcohol Distiller
Capacity:100L~10000L
Type:Reflux Stills
Heating method:Electrical Heating
Application:Beer Bar
Supply Ability
Supply Ability:10 Piece/Pieces per Month
Packaging & Delivery
Packaging Details:according to client’s demand
Port:Qingdao
Lead Time :
| Quantity(Pieces) | 1 – 10 | >10 |
| Est. Time(days) | 30 | To be negotiated |
Product Description

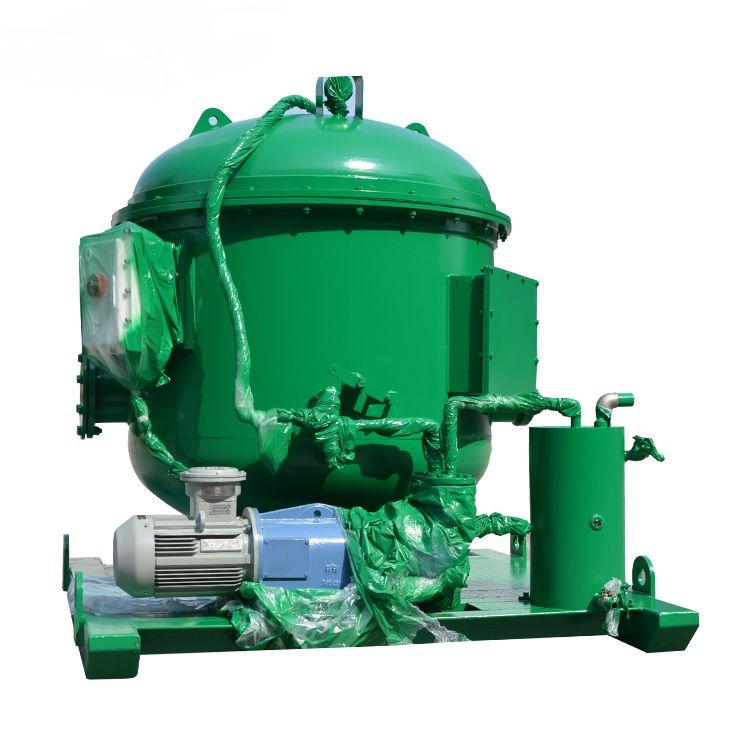

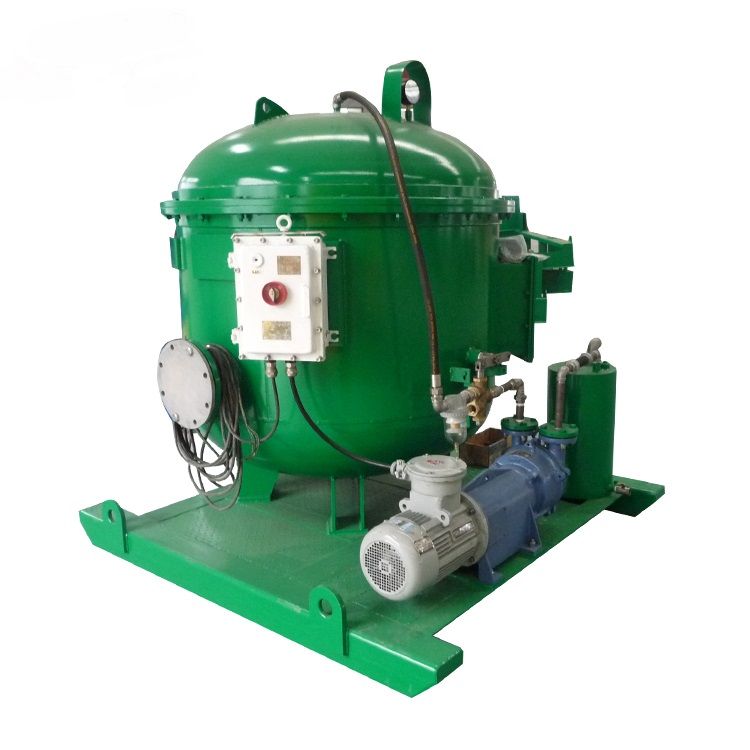

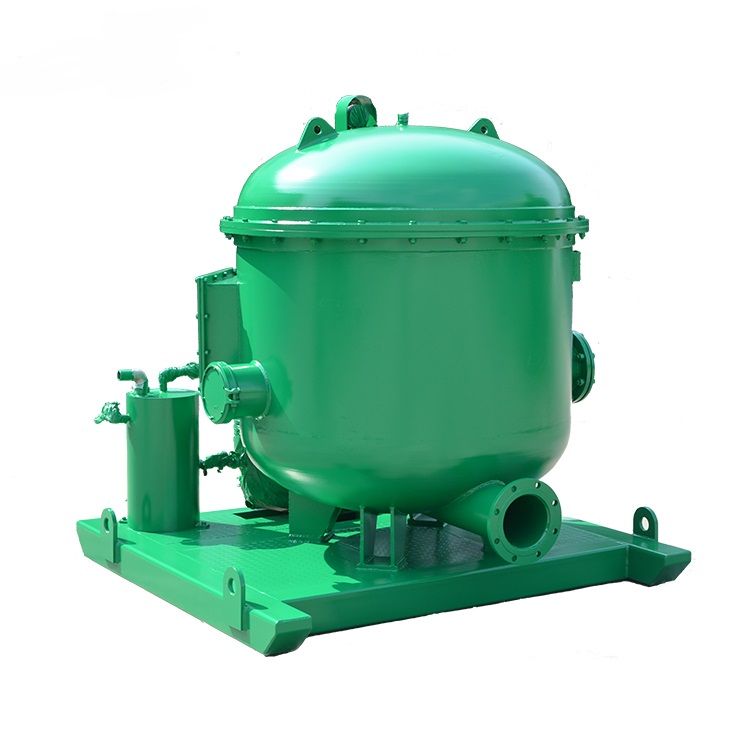

ZCQ series Vacuum Degasser is a special-purpose device and a new type one for the treatment of gas in the drilling fluids. It can get rid of various gas of invasive drilling quickly. Vacuum degasser is very important for returning mud gravity, stabilizing mud viscosity and reducing drilling cost. Also, at the same time vacuum degasser can be used as a heavy-power agitator and supported applicable to all types of mud circulation purification system. The vacuum degasser design of the structure is scientific and rational. So we are able to achieve an effective gas-liquid separation, filter out impurities and to ensure that the exhaust pipe is always smooth.ZCQ series Vacuum Degasser Technical Parameters
| Model | ZCQ270 | ZCQ360 |
| Main diameter | 800mm | 1000mm |
| Capacity | ≤270m3/h | ≤360m3/h |
| Vacuum | 0.030~0.050Mpa | 0.040~0.065Mpa |
| Ratio | 1.68 | 1.72 |
| Efficiency | ≥95% | ≥95% |
| Motor power | 22KW | 37KW |
| Vacuum Power | 3KW | 7.5KW |
| Rotary speed | 870r/min | 880r/min |
| Dimension | 2000×1000×1670mm | 2400×1500×1850mm |
| Weight | 1350kg | 1800kg |
Vacuum degasser for drilling fluids solids control:
Vacuum Degasser is also called mud/Gas separator. Mud/gas separators (Degasser) is the first units of solids control equipment arranged to treat drilling mud. As such, they process all of the drilling mud from the flow line before the mud reaches the primary shale shakers. The units have no moving parts and rely on the density difference between the gas and the mud for removal. The process is simple, yet very effective for well drilling fluids processing system.
Vaccum Degasser is used to remove the small entrained gas bubbles left in the mud by the mud/gas separator. These units are positioned downstream from mud/gas separators, gumbo removal equipments (if utilized), shale shakers and mud conditioners (if utilized), while hydrocyclone desander and Decanting centrifuges follow in the arrangement.
