Other Pump Parts
API Mud Pump Parts Jzr-L8 Needle Valve
The Needle Valve or Stop Valve for Pulsation Dampener, with superior …
Other Pump Parts

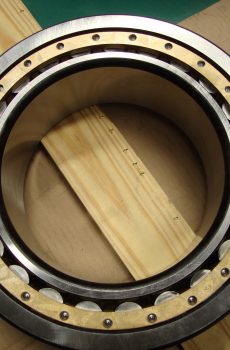

Bearing
In mud pumps, the role of bearings is particularly critical because they can support the operation of rotating components, reduce friction and heat generation, and ensure the efficient and stable operation of the mud pump. The internal structure of bearings, such as the design of rolling elements and retaining frames, directly affects their load capacity and performance. For example, the …
Bearing
Bering
UPET provides a wide range of bearing solutions specifically designed for oilfield applications, with excellent experience in bearing design experience in rolling element bearings and engineered plain bearings. Premium utilizes the latest analytical tools that include solid modeling, finite element analysis, and proprietary bearing design programs that provide us with unique capabilities.
UPETÂ provides TIMKEN, SKF, …
Fluid End Module , Other Pump Parts
Bomco Mud Pump Parts Fluid End Module & Hydraulic Cylinder
Fluid End Module & Spare Parts
.Fluid end module.Threaded ring
.Lock cap
.Cylinder head
.Cylinder head plug
.Valve cover
.Valve guide
.Liner retainer
.Liner bushing .Liner clamp .Wear plate
Power End Parts
·Bull gear ·Pinion shaft ·Bearing
·Crankshaft ·Connecting & Extension rod
·Crosshead, Pin & Guide
Fluid End Expendables
·Liner ·Liner gasket ·Piston ·Piston rubber ·Valve & Seat
·Valve spring ·Valve insert ·Piston rod ·Piston rod clamp
Accessories & Tools
·Pulsation dampener ·Bladder
·Discharge block ·Pressure gauge
·Suction manifold ·Relief valve
·Discharge manifold
Liner
Ceramic Liner of Mud Pump Ceramic Liner F500/F800/F1000/Pz8/Pz9etc
Introduction
We are a professional supplier of mud pump liners that used on all kinds of mud pumps incluing: China F series Mud Pumps(made by BOMCO, RG, RONGLI, RONGSHENG, HONGHUA), China 3NB series Mud Pumps(made by Lanzhou, Qingzhou), EMSCO, GARDNER DENVER, NATIONAL, OILWELL, IDECO etc.
China F series Mud Pump: F-500, F-800/1000, F-1300/1600
China 3NB series Mud Pump: 3NB-350, 3NB-500, 3NB-600, 3NB-800, 3NB-1000, …
Fluid End Module
Chine Manufacture Triplex Mud Pump Parts Hydraulic Cylinder Hhf-500/Hhf-800/Hhf-1300/Hhf-1600/3nb-1600f/5nb-1600/5nb-2400 etc
Hydraulic cylinder is also called the valve box, it is a major part to the fluid end parts. Blank forged by highstrength alloy steel. After heat treated, with multi-channel processes. The three cylinders of each pump is interchangeable. The following key parts: cone sawtooth thread of cylinder head, connect of the curve of all the screw hole and inner cavity. Quick Details
<img ...

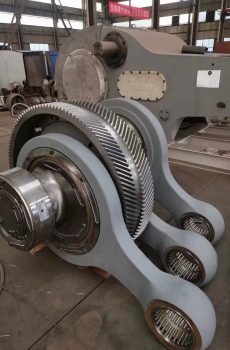

Crankshaft Assembly
Crankshaft Assembly
Crankshaft is the core part of mud pump power end and the key driving part of mud pump,forged by high quality alloy steel 35CrMo or 40CrMnMo, which holding high machinery performance and sprying technology and shock resistance after heat treatment. It has no crack and impurities.
