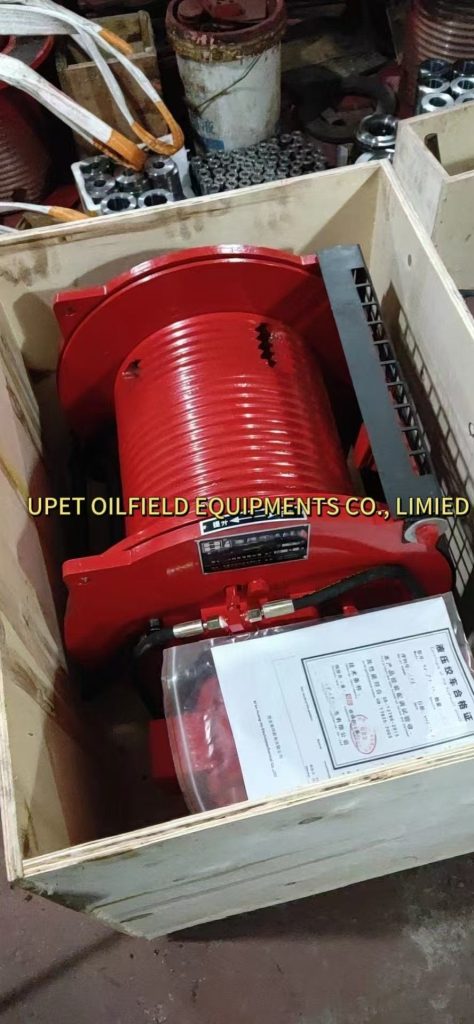

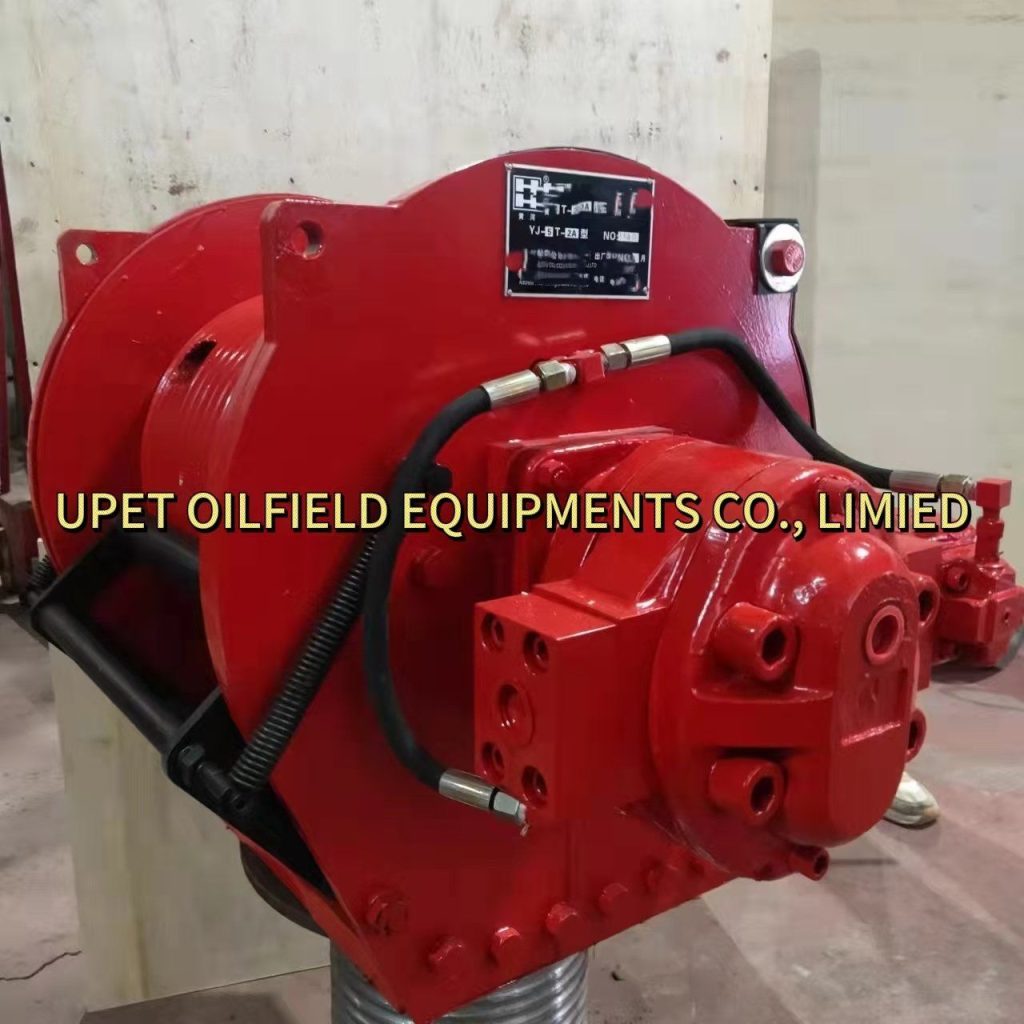

Hydraulic Winch/Lifting Winch Yj-5y-2A for Oilfield/Mining/Construction Use

Typical Technical Parameters (Estimated)

Based on the model and the specifications of a common 5-ton hydraulic winch, the approximate parameter range is as follows:

· Rated Pull Force: 50 kN (approximately 5 tons)
· Steel wire rope diameter: Typically Φ14mm to Φ18mm
· Rated speed: Generally between 0-15 meters per minute (depending on the flow rate and pressure of the hydraulic system)
· Capacity: Typically ranges from 100 to 300 meters, depending on the drum size.
· Drive method: High-speed hydraulic motor + reducer
· Control Method: Typically equipped with hydraulic control valves, enabling stepless speed regulation, forward and reverse rotation, and overload protection.
· Braking method: Typically equipped with a normally closed hydraulic release brake to ensure safety.

Key Features and Applications

1. Advantages:
      · Stepless speed regulation: By adjusting the flow of hydraulic oil, the lifting and lowering speeds can be smoothly controlled.
      · Overload Protection: The hydraulic system is equipped with a built-in overflow valve, which effectively prevents overload and protects the equipment and wire rope.
      Compact Structure: The design is compact with high power density.
      · Smooth operation: Steady transmission with minimal impact.
      · Excellent explosion-proof performance: Particularly suitable for environments with explosion-proof requirements, such as mines and oilfields.
2. Application Fields:
      · Construction Machinery: Auxiliary equipment for truck cranes, crane trucks, and excavators.
      · Maritime Shipbuilding: Marine cargo handling machinery, mooring winches, and tow winches.
      Mining Equipment: Mining winches, rock drilling jumbos, etc.
      · Petroleum drilling and extraction: workover rigs, pilot rigs, etc.
      · Other industrial fields: Such as metallurgy, forestry, construction sites, and other scenarios requiring traction and lifting.

Important Notice

· Specific parameters are subject to the manufacturer’s standards: There may be slight variations in the definition of model suffixes among different manufacturers.
