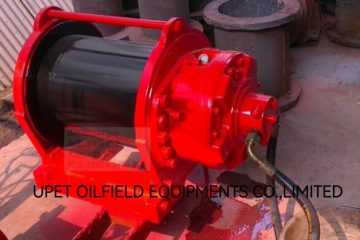

The XJFH series pneumatic winch is a winch device powered by a pneumatic motor, which drives the drum through a gear reduction mechanism to achieve heavy object traction and lifting. It has the advantages of compact structure, easy operation, safe and reliable work, simple maintenance, smooth operation, and continuously variable transmission. As an explosion-proof traction and lifting power device, it is particularly suitable for oil fields, geological drilling, mining, and places with explosive and flammable gases.
Product Description
XJFH-5/35KZP series auto ropepneumatic winch is a newly developed winch with automatic rope arranging mechanism, which solves the problem of the automatic rope arranging winch.XJFH-5/25KZP autorope winch can be used as explosion-proof traction, lifting power device, especially suitable for oil fields (including the ocean), geological drilling, mining and flammable and explosive gas The characteristics of XJFH-5/35KZP type auto rope winch are as follows: compact structure, small volume, light weight; stepless speed; Easy to operate, can be reversed; The safety, reliability, especially suitable for flammable, explosive gas; Starting torque is large, can be started with load Simple and convenient maintenance, smooth operation; automatically discharge, a rope.

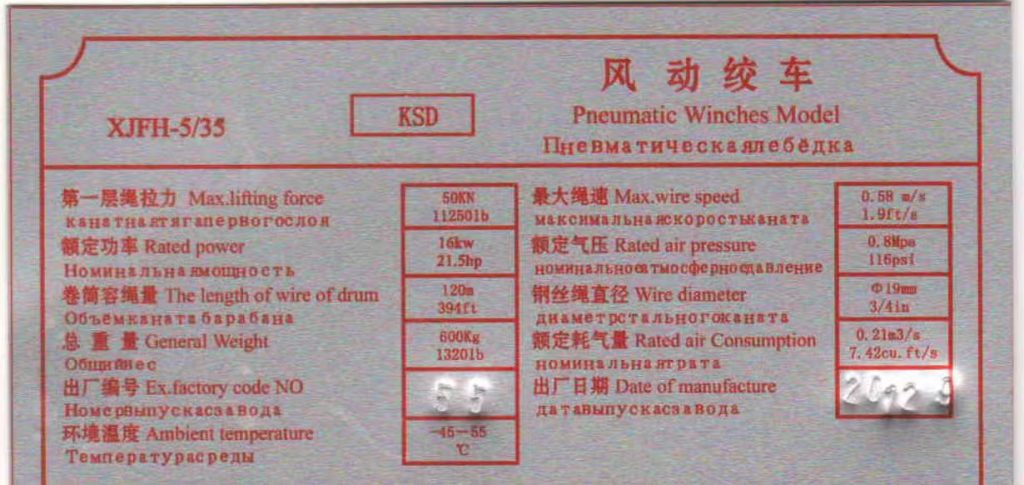

| Item | Specification & Technical Parameter | |||
| Model | XJFH-2/35 | XJFH-3/35 | XJFH-5/35 | XJFH-10-35 |
| Rated Pulling force | 20KN | 30KN | 50KN | 100KN |
| The maximum speed of wire rope | 18m/min | 12m/min | 12m/min | 8m/min |
| Rated Power | 5.6kw | 12kw | 16kw | 30kw |
| Rated Intake Air Pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| Rated Air consumption | 5m3/min | 10m3/min | 12.7m3/min | 24m3/min |
| Rope capacity | 100m | 200m/400m | 200m/400m | 200m |
| The diameter of Wire Rope | 12mm | 16mm | 18.5mm | 24mm |
| Overall size | 560* 360* 460mm | 1250* 500* 700mm | 1300* 520* 760mm | 1500* 720* 920mm |
| Weight | 200kg | 500kg | 550kg | 1100kg |
