Quick Details
Model Number:All size
Place of Origin:Shandong, China
Pressure:High Pressure
Structure:PISTON PUMP
Material:NBR/Polyurethane
Name:mud pump piston
Type:Normal
Warranty:1 Year
Keywords:piston
Color:black, yellow
Pump Type:piston pump
Delivery time:25 Days
MOQ:2 pc
Power:Hydraulic
Fuel:Diesel
Usage:Mud Pump
Application:drilling mud pump
Supply Ability
Supply Ability:1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
wooden box or according to clients requirement.
Port:QINGDAO, SHANGHAI, TIANJIN
Product Description

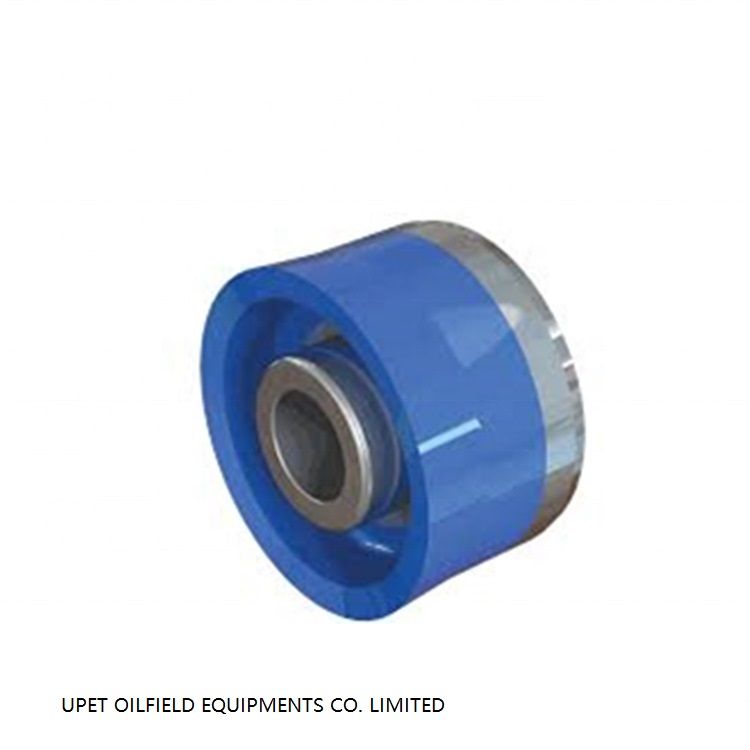

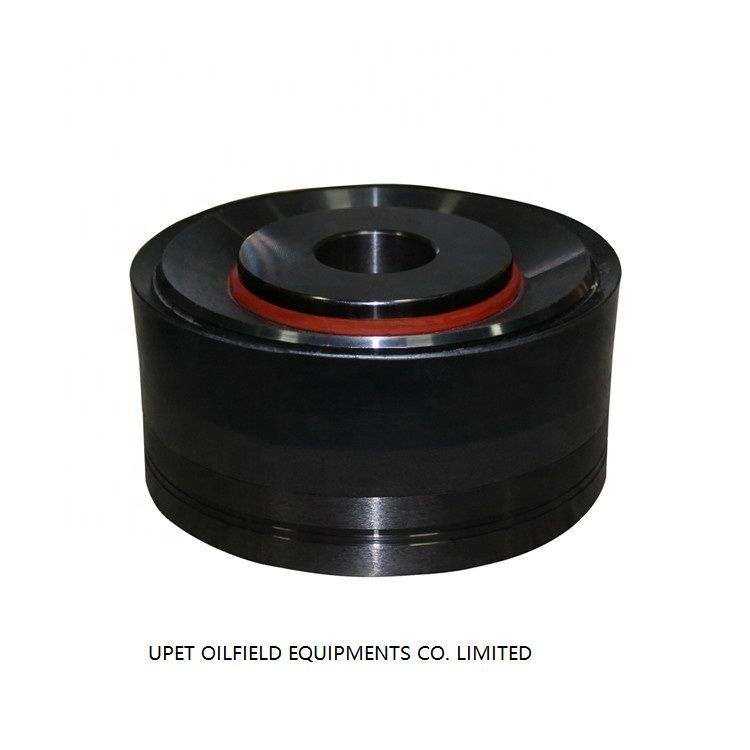

The mud pump piston assembly is one of the main parts of the hydraulic end system of the mud pump.The discharge pressure of the mud pump is generated by reciprocating linear motion of the piston assembly in the piston.Piston assembly by the piston core, rubber, spring, pressure plate, etc.
Our mud pump pistons are strictly manufactured according to API Standard, which with a high performance in various well drilling environment. The hub is forged from high quality steel, and the piston rubber is made from specially formulated compounds which are of heat, oil and water resistance. It is interchangeable with all other API standard designed pistons. And the valve rubber is easy to install.
| Mud Pump Piston Model | ||||||||
| BOMCO | F-500 | F-800 | F-1000 | F-1300 | F-1600 | F-1600HL | F-1600L | F-2200HL |
| Hong Hua | HHF-500 | HHF-800 | HHF-1300 | HHF-1600 | 3NB-1600F | 5NB-1600 | 5NB-2400 | |
| EMSCO | F-500 | F-800 | F-1000 | F-1300 | F-1600 | FD-1000 | FC-2200 | FB-1300 |
| Gardner Denver | PAH | P7 | P8/9 | P10/11 | PXL | PX-11 | PZL | PY-FXD |
| National | 7-P-50 | 8-P-80 | 9-P-100 | 10-P-130 | 12-P-160 | 14-P-200 | 14-P-220 | N-1000/1300 |
| Oilwell | A-850-PT | A-1100-PT | A-1400-PT | A-1700-PT | ||||
| TSC | WF-500 | WF-800 | WF-1000 | WF-1300 | WF-1600 | WF-2000 | WF-2200 | |
| IDECO | T-500 | T-800 | T-1000 | T-1300 | T-1600 | |||
Main Features
1. Corrosion-resistant, capable of operate with the oil and water base drilling mud or other corrosive liquid etc.
2. Wear resistance, capable of working with high pressure mud with solid particles ,such as rock cuttings , quartz sands.
3. long operation time due to the robust material and treatment of rubber.
