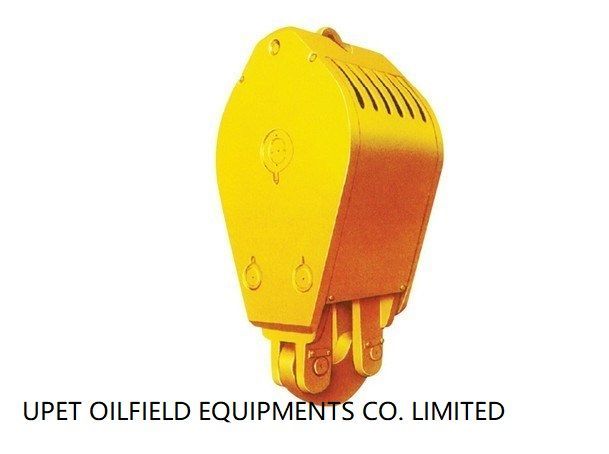

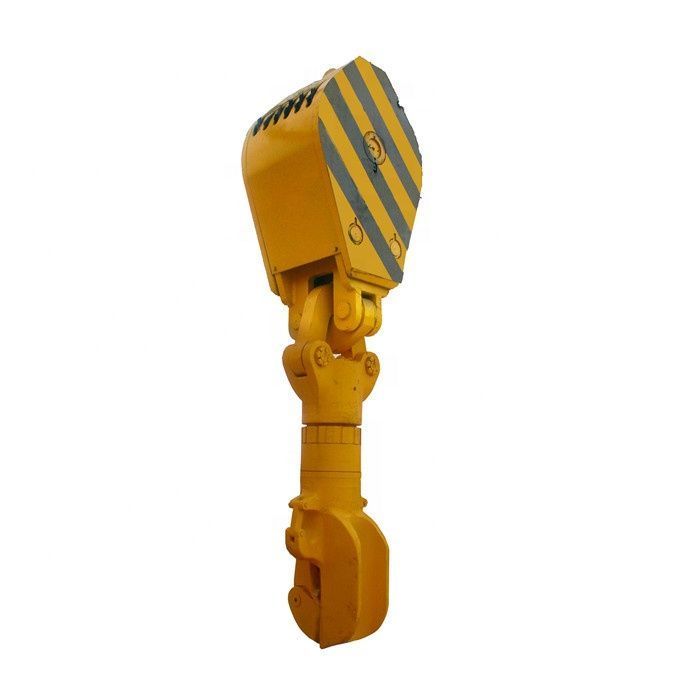

Quick Details Condition:New Applicable Industries:Energy & Mining Place of Origin:Shandong, China Type:Traveling Block Machine Type:Drilling Tool Certification:API Material:Carbon Steel Processing Type:Casting Use:Well Drilling Max. hook load (kN):110 O.D. of sheaves in (mm):760 Number of sheaves:4 Wire line Dia. In (mm):26mm Major-hook opening (mm):150 Spring travel (mm):150 Supply Ability Supply Ability:100 Set/Sets per Month Packaging & Delivery Packaging Details:WOODEN CASE, IRON CASE OR AS PER REQUIREMENTS Port:Qingdao Lead Time : Quantity(Sets)1 – 1>1Est. Time(days)30To be negotiated Product Description 1.The lateral plate is thick section iron plate with heavy enough weight. The wirerope is always in tension while lifting and lowering empty elevator, which easier drum whipping and the speed control of lowering empty hook also can prolong the service life of wirerope. 2.Pulley groove is medium-frequency quenched to improve the surface hardness in order to prolong the service life. 3.All the pulleys are equipped with double cone roller bearing, each with independent lube pipe. 4.Queenched and tempered alloy steel shaft, with single pulley bearing lubricant grease hole. 5.Heavy duty wirerope protecting cap. 6.High strength wirerope elevator 7.The sheaves and bearings are interchangeable with those of matching Travelling Block. 8.The travelling block confirm to API Spec 8A regulations, and API monogram is permitted to be used. ModelYG135YG170YG225YC225DG225Max.hook load kN13501700225022502250O.D.of sheaves mm(in)760(30)915(36)1120(44)1120(44)-Number of sheaves4555-Dia meter of wire line mm(in)29(1 1/8)29(1 1/8)32(1 1/4)32(1 1/4)-Major-hook opening mm150180190-190Spring travel mm170140180-180Overail dimension(L×W×H)mm2946×836×6523402×950×6403450×970×6602294×1190×6302545×780×750Weight kg31264594473237132180 ModelYC315DG315YC450DG450YG450Max.hook load kN31503150450045004500O.D.of sheaves mm(in)1270(50)-1524(60)-1524(60)Number of sheaves6-6-6Dia meter of wire line mm(in)35(1 3/8)-38(1 1/2)-38(1 1/2)Major-hook opening-220-220220Spring travel-200-200180Overail dimension (L×W×H)mm2680×1350×9742953×890×8303075×1600×8002950×890×8804887×1600×880Weight684234108135349612530
