Quick Details
Applicable Industries:Energy & Mining
Place of Origin:Shandong, China
Type:Bop
Machine Type:Drilling Equipment
Certification:API
Material:Carbon Steel
Processing Type:Forging
Use:Well Drilling
Main Bore mm (in):179.4(7 1/16)
Working Pressure MPa (psi):35-5000
Oil quantity for opening:1.6
Oil quantity for closing:2
Ram Type:H
Ram Size (in):maximum 5 9/16
Dimension mm:1420x645x624
weight kg:855
Supply Ability
Supply Ability:100 Set/Sets per Month
Packaging & Delivery
Packaging Details:Iron Package which could stand the long-time transportation.
Port:Qingdao
Lead Time :
| Quantity(Sets) | 1 – 10 | >10 |
| Est. Time(days) | 30 | To be negotiated |
Product Description

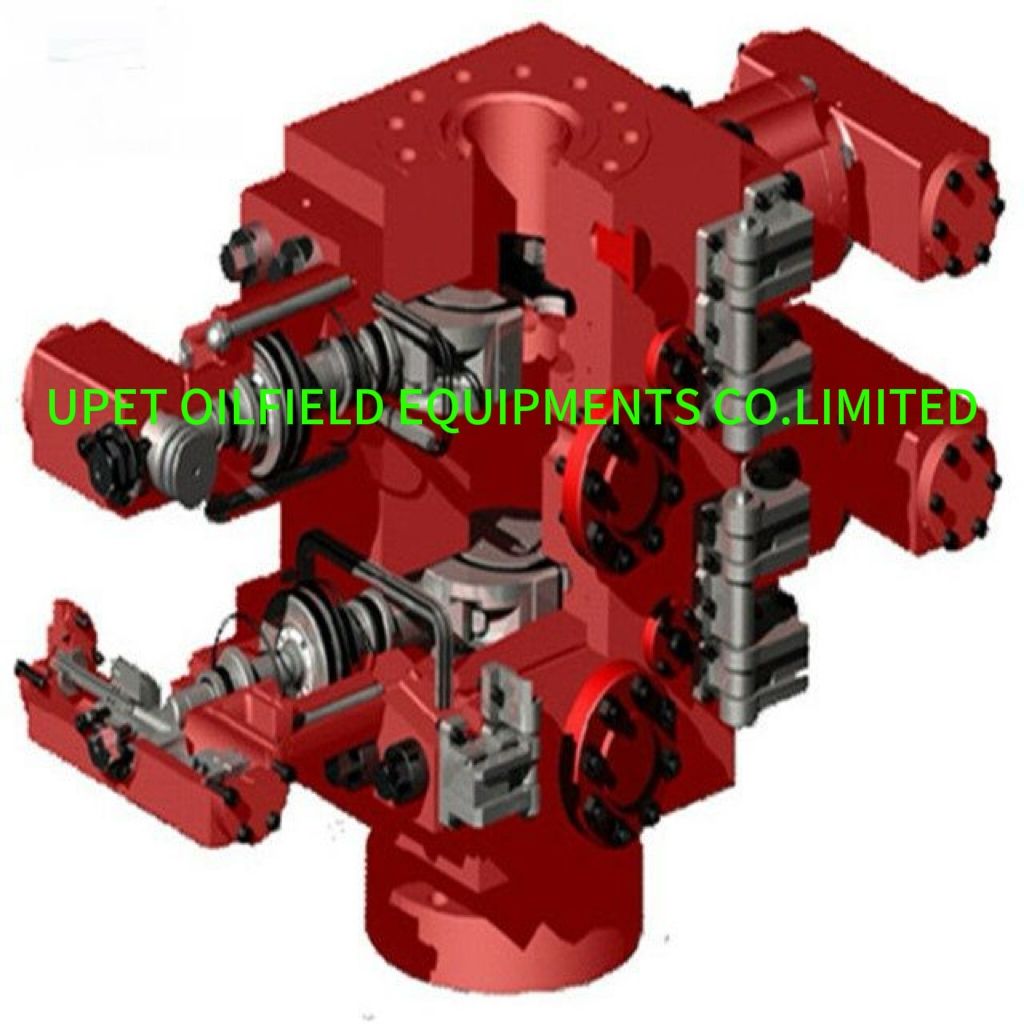

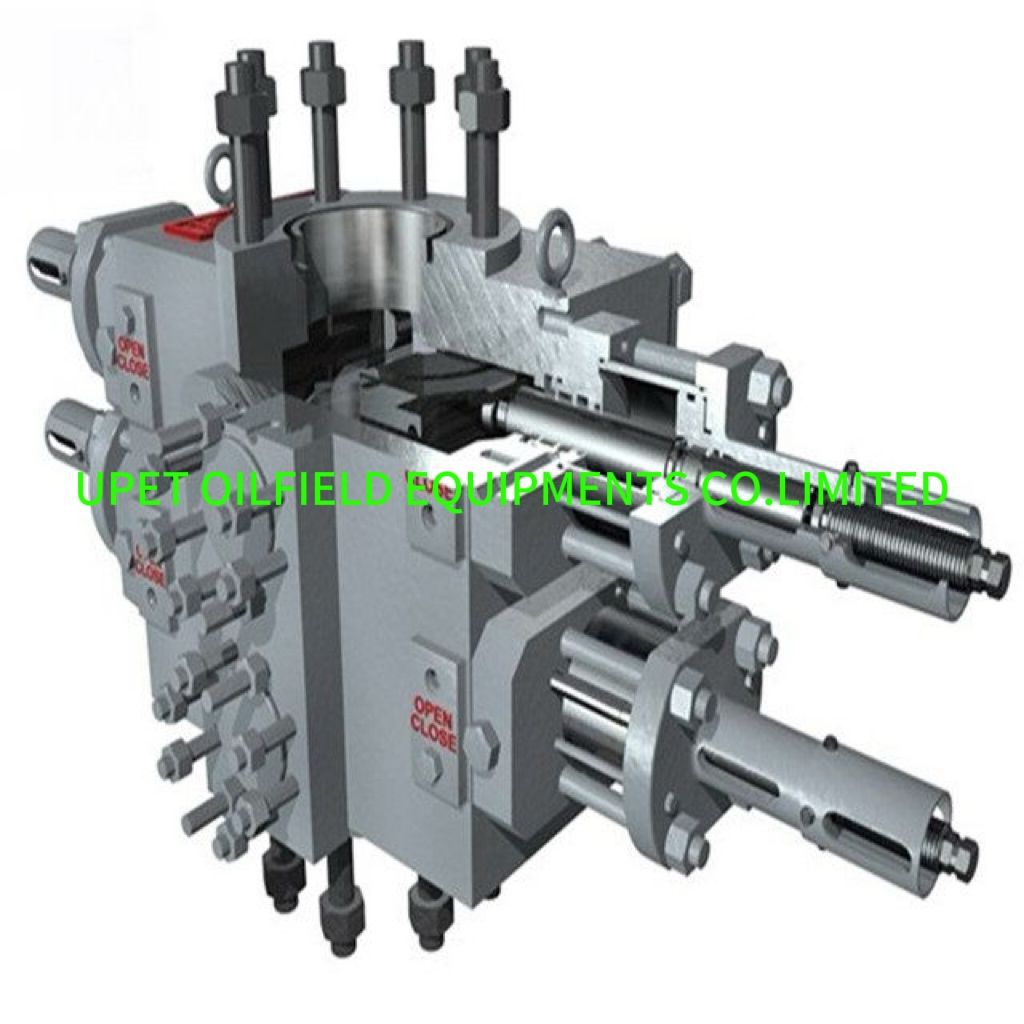

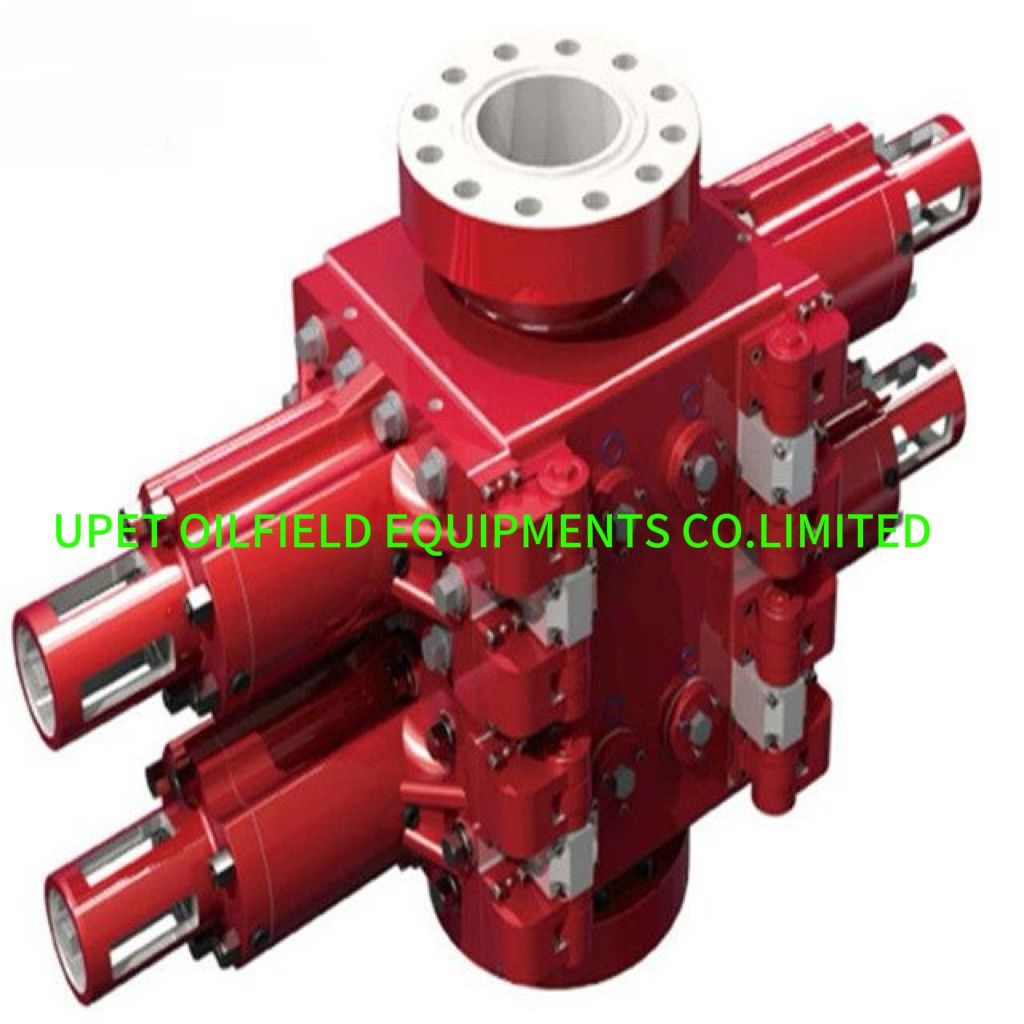

5000 psi FZ18-35 single ram BOP / blowout preventer
Pressurized components adopts superior alloy steel with good strength and impact toughness.
Door seal of the high pressure BOP uses combined seal, which has better seal from the well pressure.
Use floating or integral gate, can seal safely and change conveniently.
Use buriel-type oil passage, Bearing hinge is separated from the hydraulic hinge.
Hinge structure is simple, easy to dismount and mount.
Use big arc-type shell on both sides of the chamber, and transit by arc-type all around, to reduce the peak stress of the shell under pressure.
With compact structure, smaller than similar foreign products.
The internal shell of BOP resistant to low temperature can process pipeline, to make the steam flow inside the BOP, radiat heat.
