Quick Details
Condition:New
Warranty:1.5 years
Applicable Industries:Energy & Mining, Sucker rod tools
Place of Origin:Shandong, China
Type:Sucker Rod
Machine Type:Drilling Tool
Certification:API
Material:ZG35Cr1Mo
Processing Type:Casting
Use:Well Drilling
Product name:hook
Standard:API 7K
Size:5/8,3/4-7/8,1,1 1/8
Usage:well drilling rig
MOQ:1pc
Weight:19KG
Model:RH25
Supply Ability
Supply Ability:500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1)Plywood case package
90 pcs/box:
2)N.W:270kg,G.W:290kg
3)Package:1000*560*530
Port:Qingdao
Lead Time :
| Quantity(Pieces) | 1 – 100 | >100 |
| Est. Time(days) | 20 | To be negotiated |
Product Description

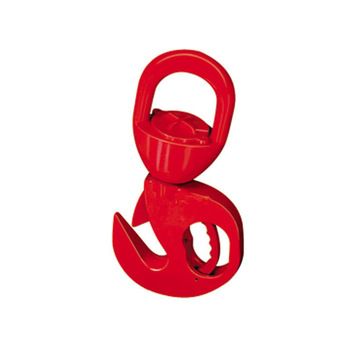

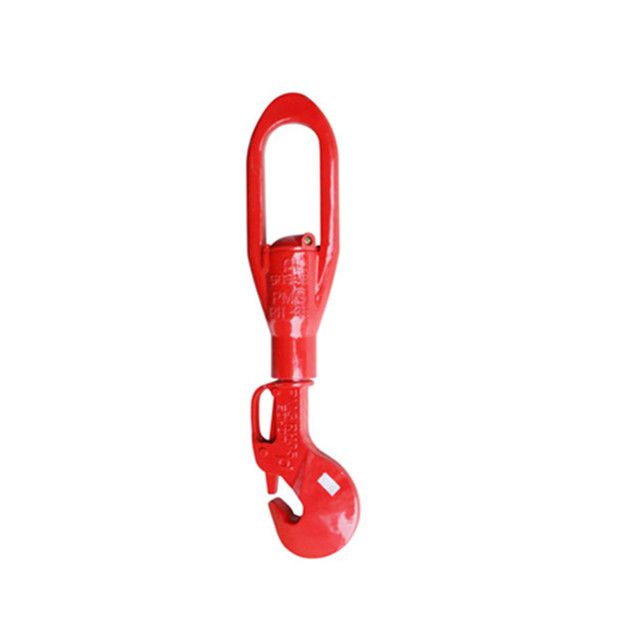

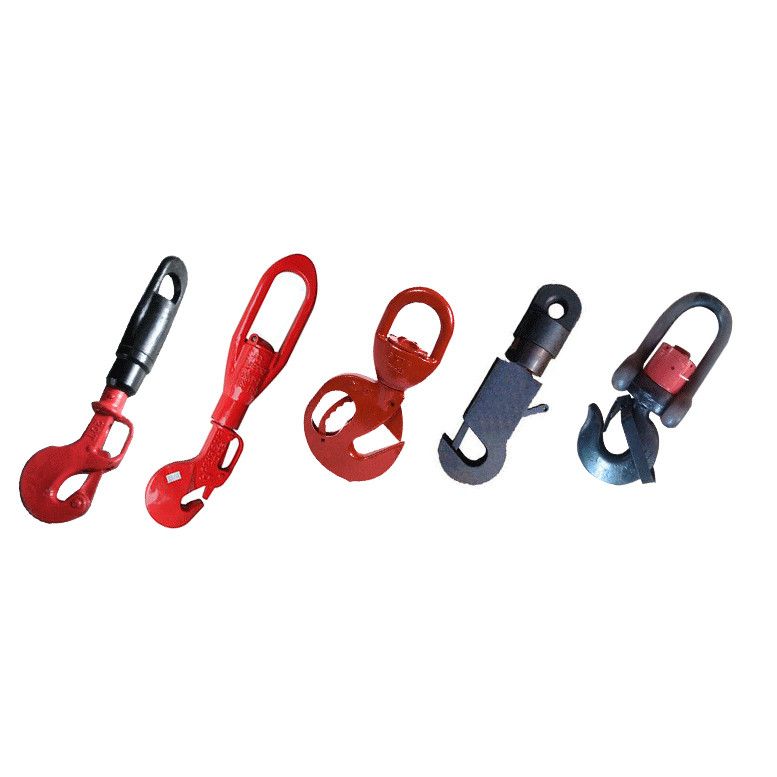

RH sucker rod hook is composed of hook, bail and locking assembly. The bail of sucker rod is able to get into the hook without opening the locking arm. After the bail is on right place, locking arm reset (preventing the bail of sucker rod get out of hook) under the function of spring which ensures the lifting safety of sucker rod hook. In addition, put a bush on the spring in case the something gets into the locking assembly and get the locking assembly lost the function.
Main Technical Parameters:
| Type | RH-35 | RH-25 |
| Max Related Load | 35 tons(315kN) | 25tons(225kN) |
| Hook Open Dimension | 1.7/8 in(47.6mm) | 1.7/8in(47.6mm) |
