Products Description

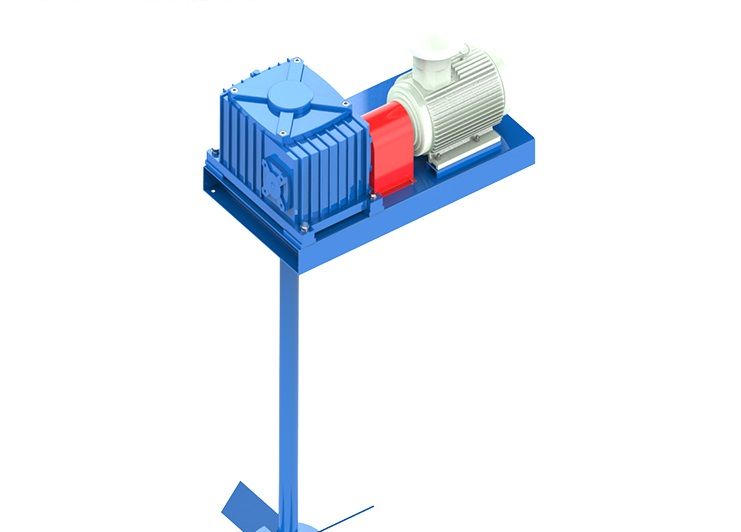

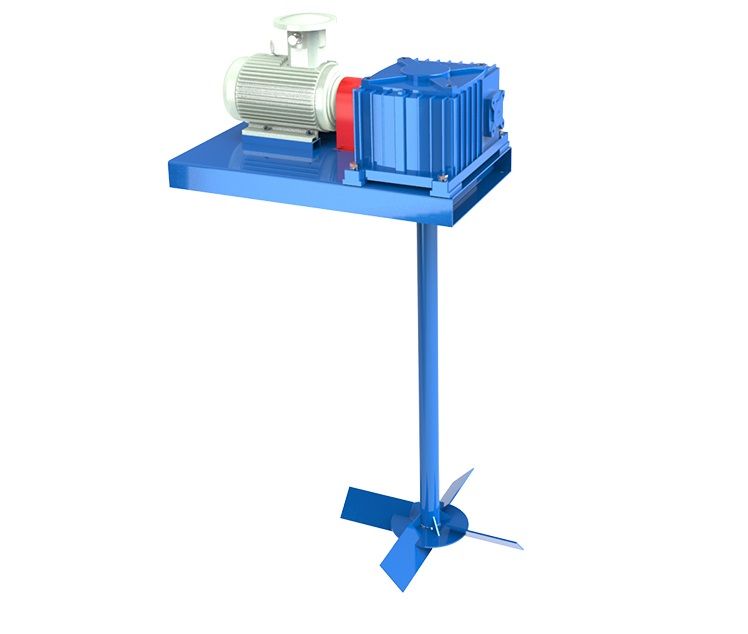

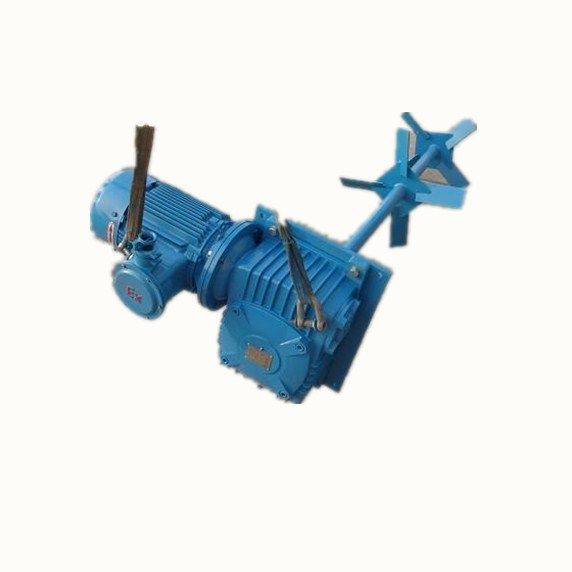

JBQ series mud Agitator, Less than 5.5 kW drilling mud Agitator adopts the blender cycloid speed reducer, and it is applied to the drug liquids mixing tank. This mud agitator has the advantage of compact structure so it occupies small area. More than 7.5 kW Mud Agitator uses the turbo and worm gear speed reducer, with the large torque transmission, the revolution is steady,it works reliablely and has great merit. Common model of mud agitator is JBQ5.5kW ,JBQ7.5kW ,JBQ11kW and JBQ15kW.The drilling mud agitator is an important components for Solids Control drilling fluids processing system.
Product Parameters
JBQ Mud Agitator Technical Parameters:
| Agitator Model | JBQ5.5 | JBQ7.5 | JBQ11 | JBQ15 |
| Motor Power | 5.5KW(7.5hp) | 7.5KW(10hp) | 11KW(15hp) | 15KW(20hp) |
| Impeller Speed | 60/72RPM | 60/72RPM | 60/72RPM | 60/72RPM |
| Impeller Dia(Single) | 600mm | 850mm | 950mm | 1050mm |
| Impeller Dia(Double) | N/A | Up:750mm Down:650mm | Up:850mm Down:700mm | Up:950mm Down:750mm |
| Ration | 25:1 | 25:1 | 25:1 | 25:1 |
| Dimension(L*W*H) | 870*600*480mm | 906*600*480mm | 1075*650*525mm | 1170*720*565mm |
| Shaft Length | According to tank inner depth | |||
| Electric Specs | 380V/50HZ Or 460V/60HZ Or Customized | |||
| Remarks | Explosion Proof motor Shaft stabilizer Available Impeller Diameter Customization Available | |||
As a professional manufacturer for soilds control equipments, we have designed lots of high-quality products, and JBQ series Agitator is one of them. To keep both the mud uniformity and the suspension of solids, the mud agitator is used to agitate the mud consecutively and reliably. This agitator agitates the mud to make cuttings, silt and sand pass the solids control system without being precipitated onto the tank bottom. Due to the simplex turbine decelerator, this product is featured by compact construction, light weight, balanced transmission, low noise, high efficiency of transmission and strong agitating power. Therefore, it is a reliable product in the solids control system.
