Desilter

Desilter is the third class solids control equipment to treat the drilling fluids. According to the size of the cone diameter,
they are divided into desander and desilter. Usually the cone diameter is less than 6” is called desilter, and used as the
third-control equipment in drilling operation. We commonly used 5 “and 4” cone to separate solid-phase particle size 15-47μm inthe drilling fluid. Based on customer requirements and capacity, we can select groups of cone into desilter.

Category:

Description



Desilter is the third class solids control equipment to treat the drilling fluids. According to the size of the cone diameter,
they are divided into desander and desilter. Usually the cone diameter is less than 6” is called desilter, and used as the
third-control equipment in drilling operation. We commonly used 5 “and 4” cone to separate solid-phase particle size 15-47μm inthe drilling fluid. Based on customer requirements and capacity, we can select groups of cone into desilter.

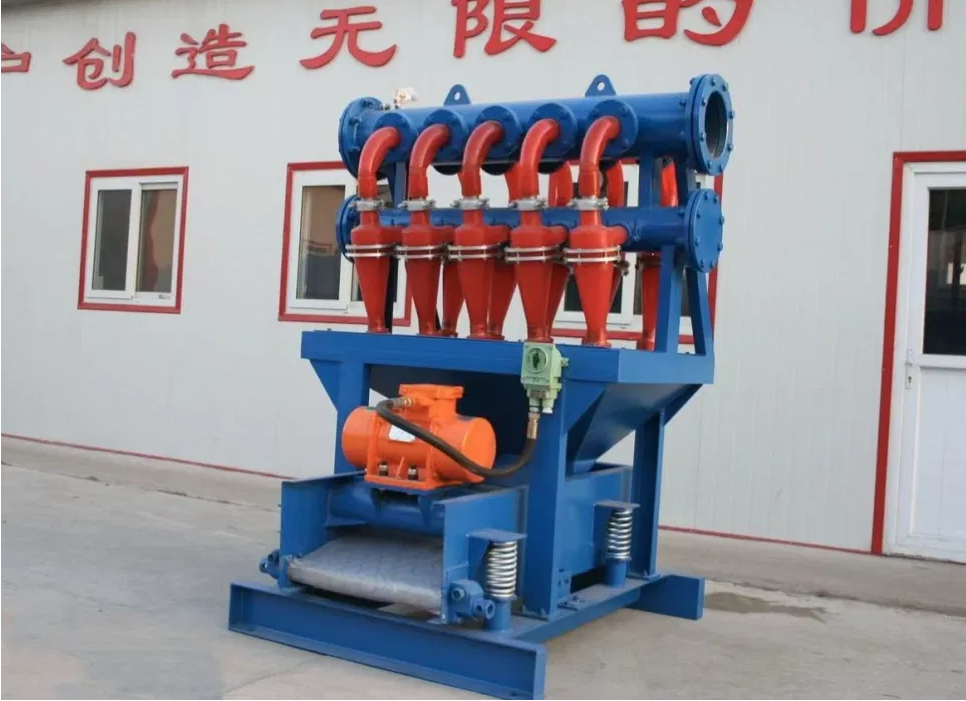

Desilter

ZQJ Desilter

ZQJ series desilter is the third class solids control equipment to treat the drilling fluids. According to the size of the cone diameter, they are divided into Desander and Desilter. Usually the cone diameter is less than 6″is called Desilter, and used as the third-control equipment in drilling operation. We commonly used 5 “and 4” cone to separate solid-phase particle size 15-47μm in the drilling fluid. Based on customer requirements and capacity, we can select groups of cone into Desilter. Desilter works very well with Solids control system other equipments.

ZQJ Desilter Technical Parameters

Model ZQJ100S ZQJ100
Capacity ≤240m3/h (1056GPM) ≤240m3/h(1056GPM)
Screen area 1.0M2  (600*1600mm) no under fluids shaker
Cone size 4″ (Each 4″ Cones= 50-75GPM)
Cone number 2-12 Ea cones, specify cones No. when ordering
Pressure 0.20~0.4Mpa 0.20~0.4Mpa
Matching pump SB4×3-12(11kw)

SB5×4-13(30KW)

SB6×5-13(37KW)

SB8×6-13(55KW)

 SB4×3-12(11kw)

SB5×4-13(30KW)

SB6×5-13(37KW)

SB8×6-13(55KW)
Inlet Size 75-150mm
Outlet Size 125-200mm
Separation size 15-20 μm

Desilter for drilling mud

We are a China exporter of desilter and desander equipments for Indian, Russian, middle east. etc. Oilfield Company of the United States and Century Int’l Oilfield Equipments LLC of the United Arab Emirates etc. choose us as desilter supplier. Our factory and company are Quality Management System ISO 9001-2000 certified. Solids Control operate international oil gas drilling mud separation system sales, service, manufacturing, distribution serivce. Buy desilter from China manufacturer,good quality, best price.. Your best hydrocyclone desilter for drilling mud circulation system.
