Quick Details
Condition:New
Warranty:1 Year
Applicable Industries:Machinery Repair Shops, Energy & Mining
Place of Origin:Shandong, China
Type:power tong
Machine Type:Drilling Equipment
Certification:API
Material:Carbon Steel
Processing Type:Forging
Use:Well Drilling
Supply Ability
Supply Ability:2000 Set/Sets per Month
Packaging & Delivery
Packaging Details:exporting package
Port:Qingdao or Tianjin
Lead Time :
| Quantity(Sets) | 1 – 1 | >1 |
| Est. Time(days) | 25 | To be negotiated |
Products Description

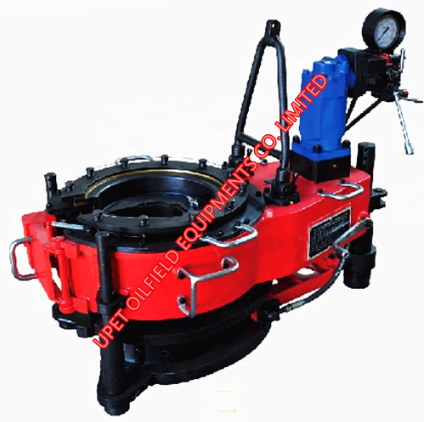

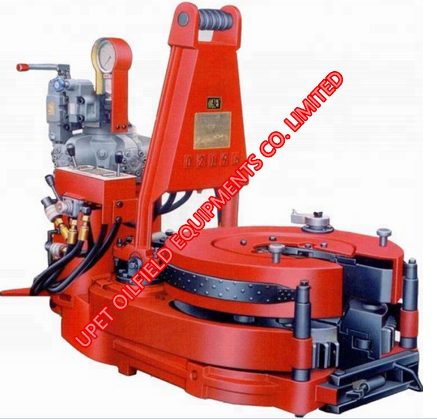

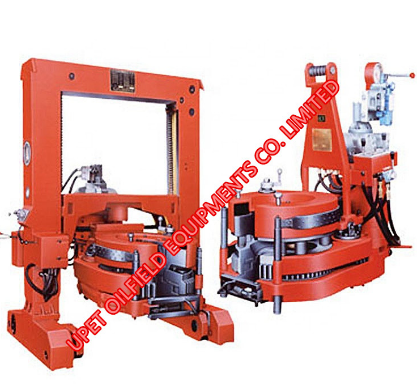

The Hydraulic Power Tong is also called the Drill Pipe Power Tong, Our ZQ series drill pipe power tong is an ideal well head tool for oil drilling, widely applied for making-up and breaking-out in offshore and onshore drilling operations and workover operations. Open-throat design of the ZQ series allows the tongs to escape from drilling pipe freely with high mobility. The tong is a combination of spinning tong and torque tong. It substitutes cathead, manual tong and rotary rope in making-up and breaking-out. The tongs are designed and manufactured according to API Spec 7K
Product Parameters
Technical Datas:
| Model | ZQ203-125 | ZQ203-100 | ZQ203-100A | ZQ203-100B | ZQ162-50 | ZQ127-25 | |
| Size rang | mm | 127-203 | 121-203 | 121-203 | 121-203 | 85-162 | 65-127 |
| in | 31/2 coupling -8body | 31/2 coupling -8body | 31/2 coupling -8body | 31/2 coupling -8body | 23/8 coupling -5body | 23/8 coupling-31/2body | |
| Max.torque | kN.M | 125 | 100 | 100 | 100 | 50 | 25 |
| ft.lbf | 92200 | 73750 | 73750 | 73750 | 36880 | 18440 | |
| Speed of tong Hi. | rpm | 40 | 40 | 40 | 40 | 60 | 65 |
| Speed of tong To. | rpm | 2.7 | 2.7 | 2.7 | 2.7 | 4.1 | 10.5 |
| Hydraulic system pressure ratigin | Mpa | 20 | 16.6 | 16.6 | 16.6 | 16 | 12 |
| Psi | 2900 | 2400 | 2400 | 2400 | 2320 | 1740 | |
| Hydraulic system pressure ratigin | L/min | 114 | 114 | 114 | 114 | 120 | 180 |
| gpm | 30 | 30 | 30 | 30 | 32 | 48 | |
| Stoke of shifting cylinder | mm | 1500 | 1500 | 1500 | / | 1000 | 1000 |
| in | 59 | 59 | 59 | / | 39.4 | 39.4 | |
| Moving distance of tong | mm | / | / | / | 0-3000 | / | / |
| in | 0-59 | ||||||
| Lifting diatance of tong | mm | / | / | 0-485 | 0-1800 | / | / |
| in | 0-19 | 0-31.5 | |||||
| Overall dimensions | mm | 1720 *1050 *1750 | 1700 *1000 *1400 | 1700* 1000 *1400 | 1750* 1650 *2050 | 1570* 800 *1190 | 1110* 790 *820 |
| in | 68* 41*69 | 67* 39*55 | 67* 39*55 | 69* 65*81 | 62* 31*47 | 44* 31*32 | |
| Weight | Kg | 2600 | 2400 | 2500 | 3250 | 1500 | 620 |
