Quick Details
Place of Origin:Shandong, China
Model Number:all size
Type:tubing head
Machine Type:
Drilling Equipment
Certification:API
Material:Carbon Steel
Processing Type:forging
Use:Well Drilling
Application:oil
Supply Ability
Supply Ability:100 Set/Sets per Month
Packaging & Delivery
Packaging Detailsstandard export packing
Port:Qingdao
Lead Time :30days
Product Description

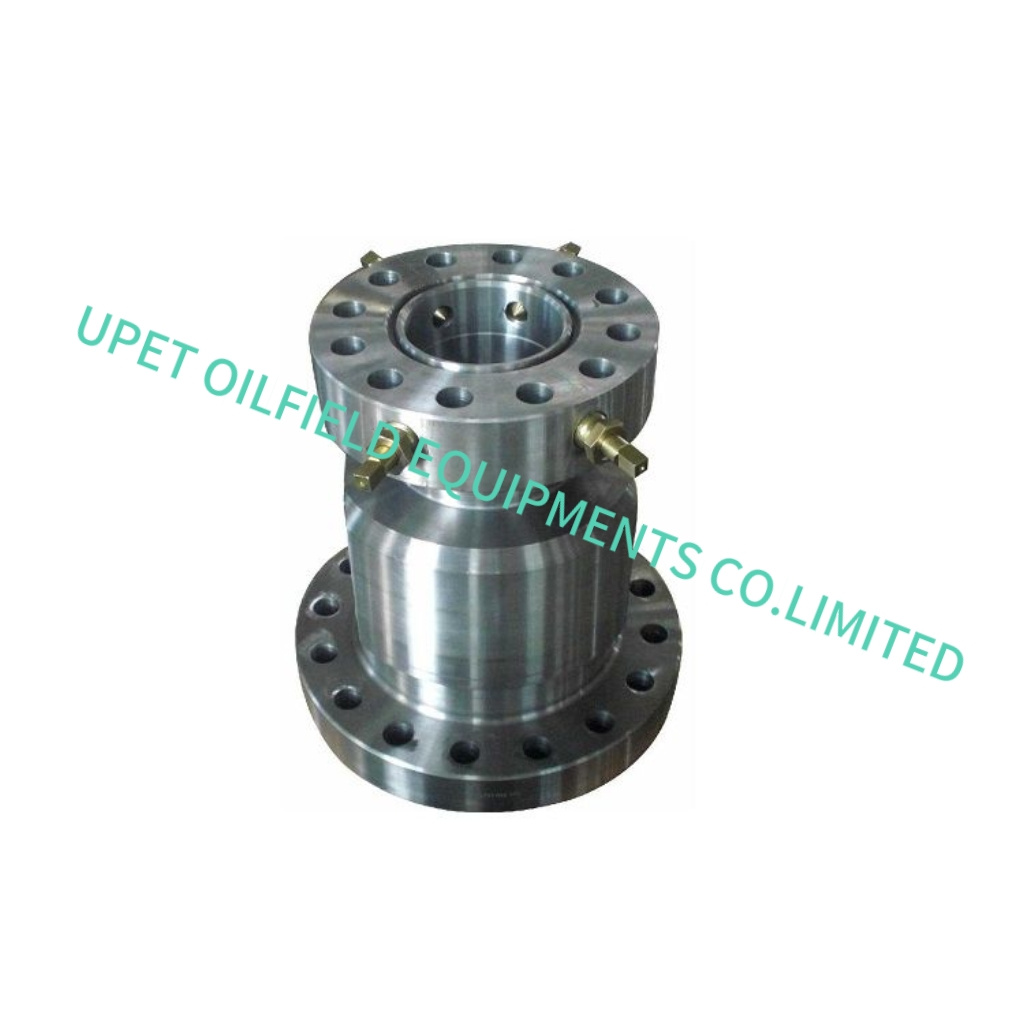

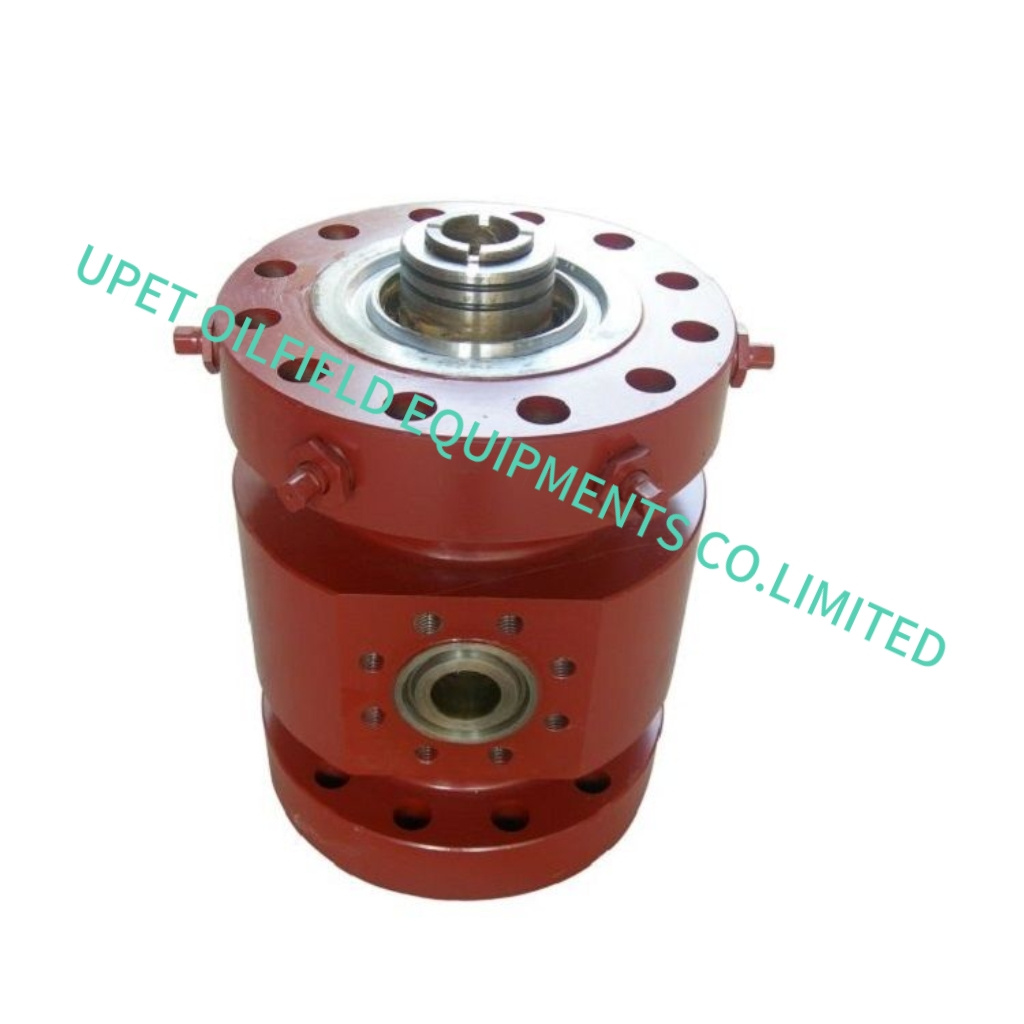

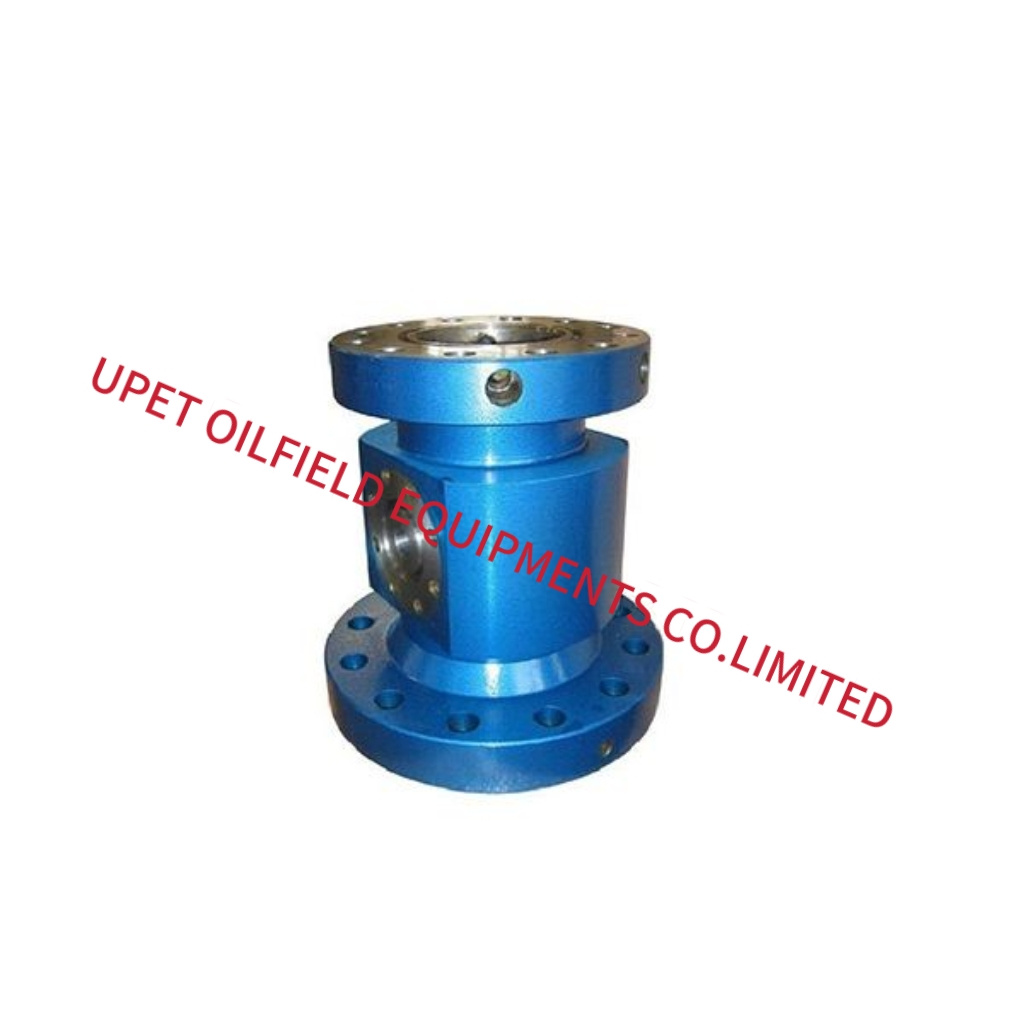

The casing head is a kind of part of connecting casings and wellheads. It is used to support the weight of technical casing and intermediate casing and seal the annular space between the casings, which provides a transition joint for the installation of the tubing head, Christmas tree and other wellheads. The two-side-outlet design allows the casing head to supply cement, monitor and control well’s sinking, and inject balance liquids etc.
Specification of single-stage casing head:
| Pressure Ratings (Mpa) | Top Flange (in) | Surface Casing (in) | Production Casing (in) |
| 35 | 13-5/8 | 13-3/8 | 7 |
| 35 | 13-5/8 | 13-3/8 | 5-1/2 |
| 35 | 13-5/8 | 9-5/8 | 7 |
| 35 | 13-5/8 | 9-5/8 | 5-1/2 |
| 21 | 13-5/8 | 13-3/8 | 7 |
| 21 | 13-5/8 | 13-3/8 | 5-1/2 |
| 21 | 13-5/8 | 9-5/8 | 7 |
| 21 | 13-5/8 | 9-5/8 | 5-1/2 |
| Top flange | Surface casing | Intermediate casing | Production casing |
| 11″-35MPa | 13 3/8″ | 9 5/8″ | 7″ |
| 5 1/2″ | |||
| 11″-70MPa | 13 3/8″ | 9 5/8″ | 7″ |
| 5 1/2″ | |||
| 11″-105MPa | 20″13 3/8″ | 9 5/8″ | 7″ |
| 5 1/2″ | |||
| 13 5/8″-35MPa | 13 3/8″ | 9 5/8″ | 7″ |
| 5 1/2″ | |||
| 13 5/8″-70MPa | 13 3/8″ | 9 5/8″ | 7″ |
| 9 5/8″ | |||
| 13 5/8″-105MPa | 20″ | 13 3/8″ | 7″ |
| 5 1/2″ |
