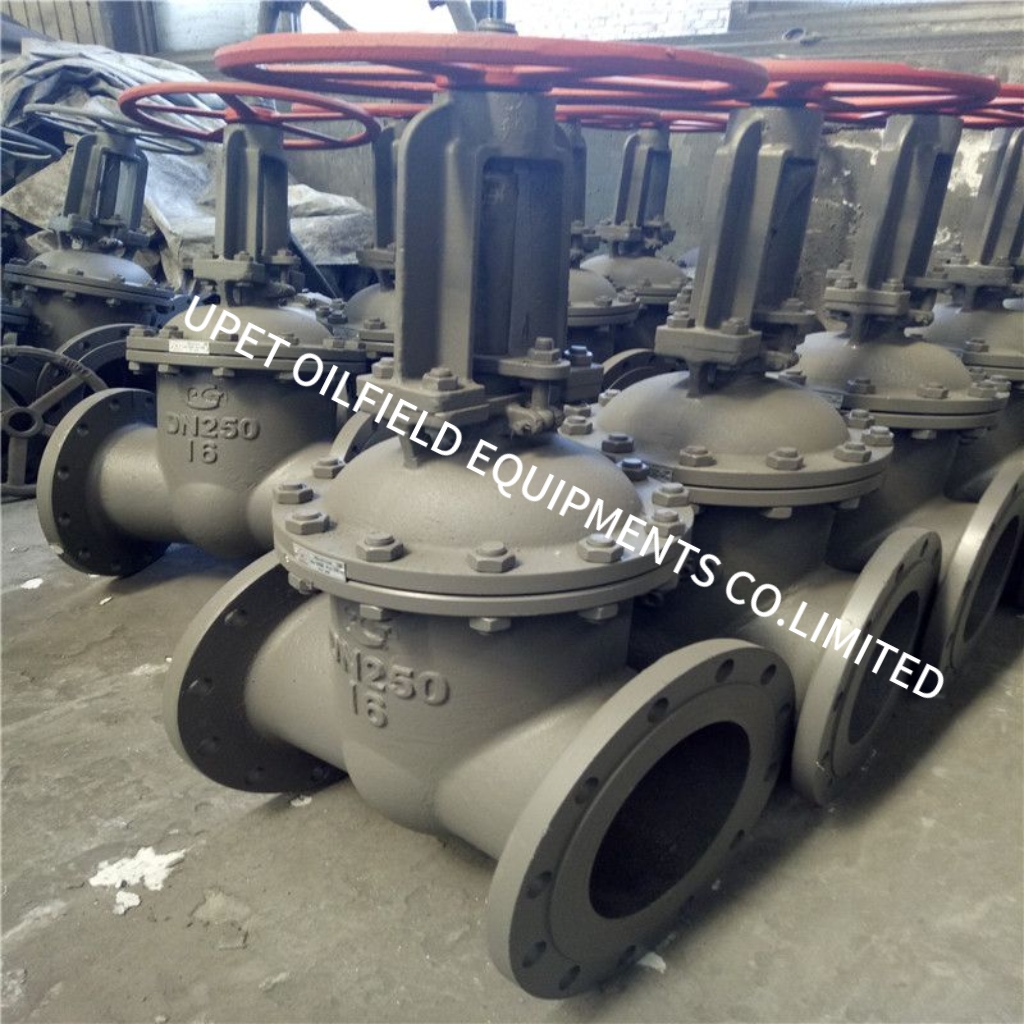

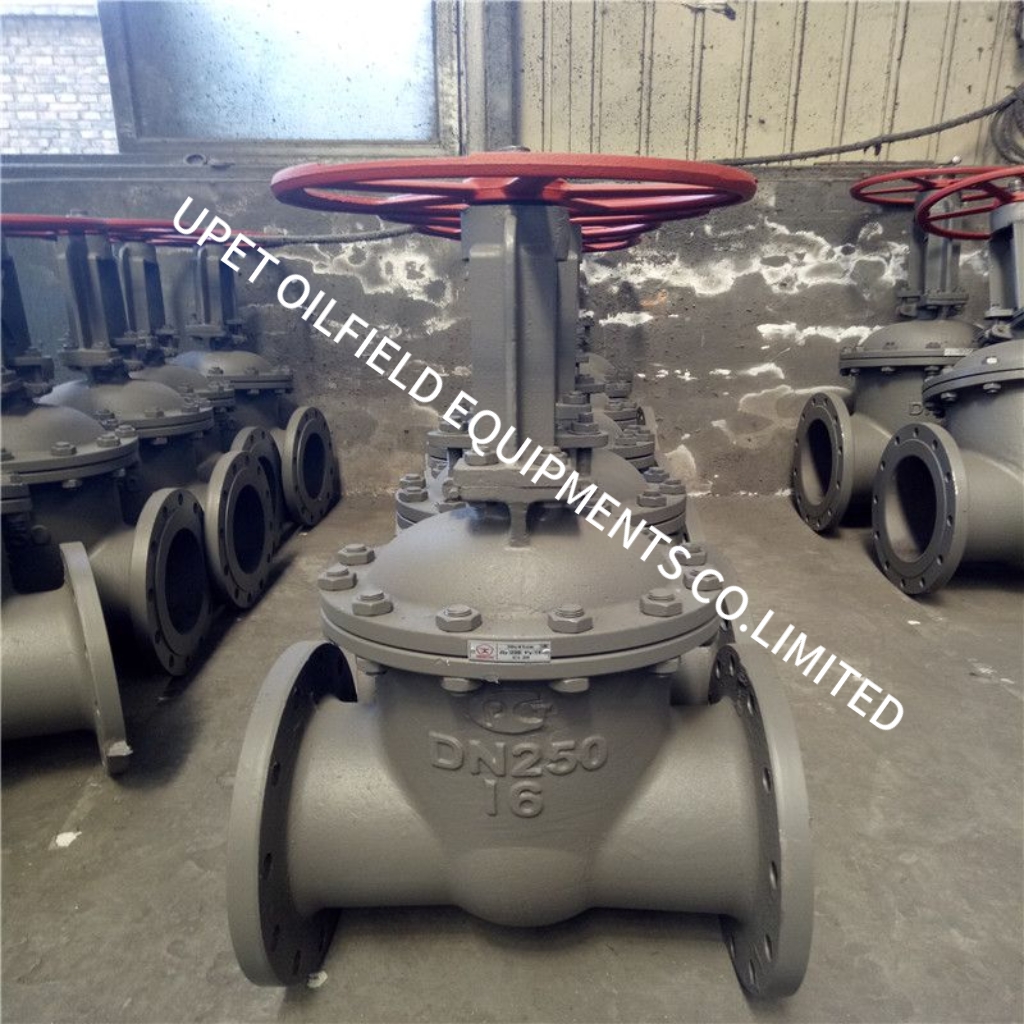

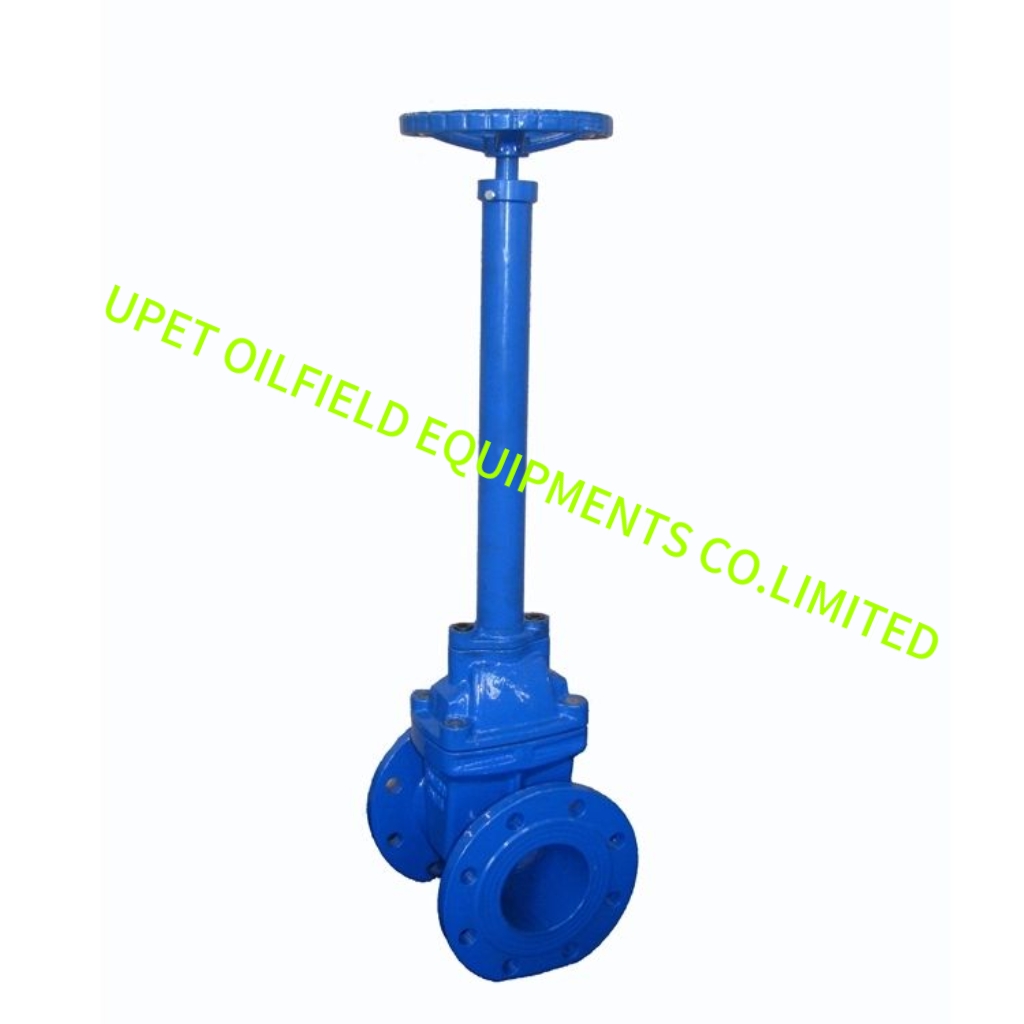

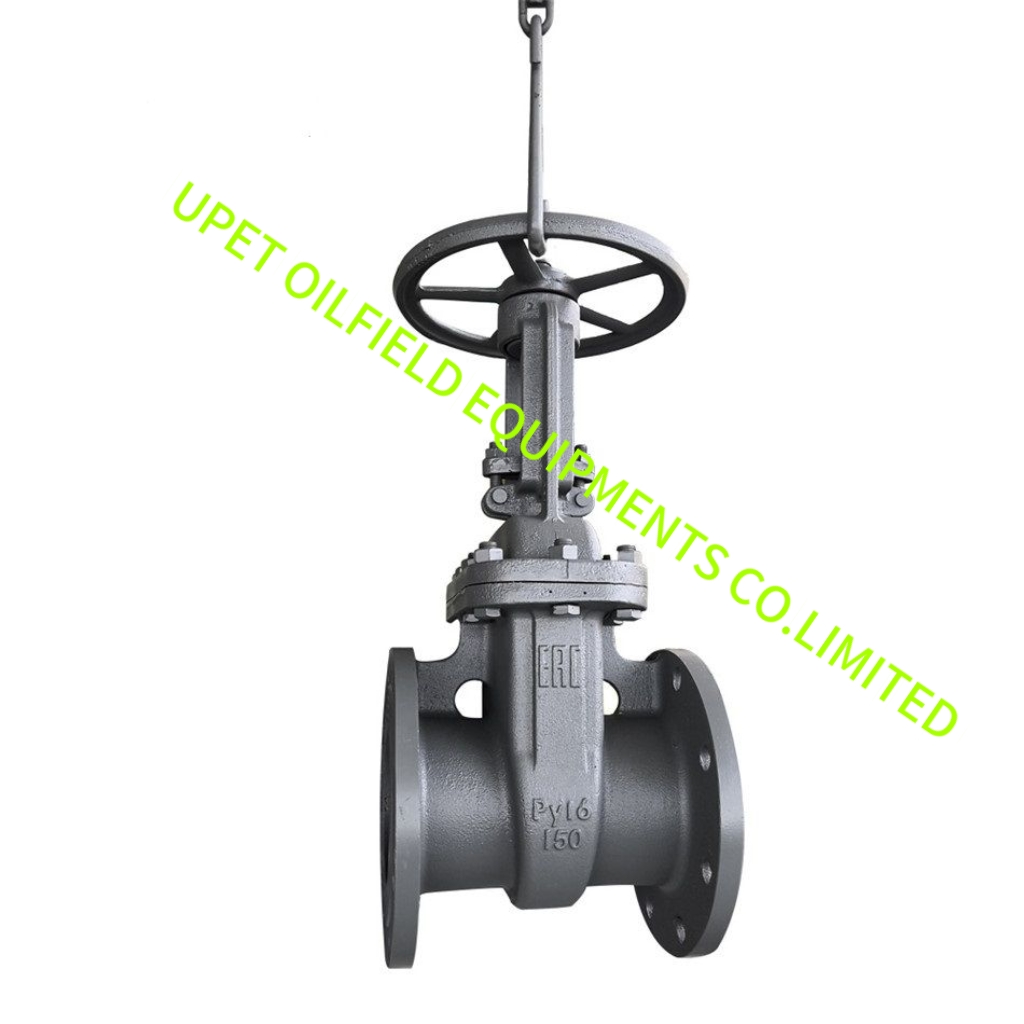

Quick Details
Place of Origin:Shandong , China
Model Number:Z45X
Application:General
Material:Casting
Temperature of Media:Medium Temperature
Pressure:Medium Pressure
Power:Manual
Media:Water
Structure:Gate
Production Size:DN50-DN1200mm
Pressure range:PN10,PN16,PN25
Design Standard:DIN3352 F4/DIN3352 F5/BS5163/AWWA C509
Body:Ductile Iron
Stem:2Cr13/SS304/SS316/Carbon Steel
Stem Nut:brass
Disc:Ductile Iron
Seat:EPDM/NBR/PTFE
Hand wheel:Ductile Iron
Supply Ability
Supply Ability:100 Ton/Tons per Month 20
Packaging & Delivery
Packaging Details:wooden boxes
Port:Qingdao
Lead Time :
| Quantity(Pieces) | 1 – 5 | >5 |
| Est. Time(days) | 30 | To be negotiated |
Product Description
1. Comply with API Spec 6A.
2. Valve structure includes both of styles, rising stem and non-rising stem.
3. End connection type: flange, thread, collar and butt welding.
4. Driving model: manual, gear drive and hydraulic.
5. Gate structure: Integral, expanded.
6. The sealing face of gate and seat is overlaying-welded with hard alloy with erosion and corrosion resistance.
7. The valve seat is classified into floating and ficed structure.
8. Stem filler adopts lip structure with reliable seal and small operation torque.
Technical parameter
| Working Pressure | 2000psi~15000psi |
| Bore Size | 1 13/16″~7 1/16″ |
| Working Media | Oil,Gas,Mud |
| Working Temperature | -46ºC~121ºC(L~U) |
| Material Class | AA BB CC DD EE FF HH |
| Product Specification Level | PSL1 PSL2 PSL3 PSL3G PSL4 |
| Product Performance | PR1 |
