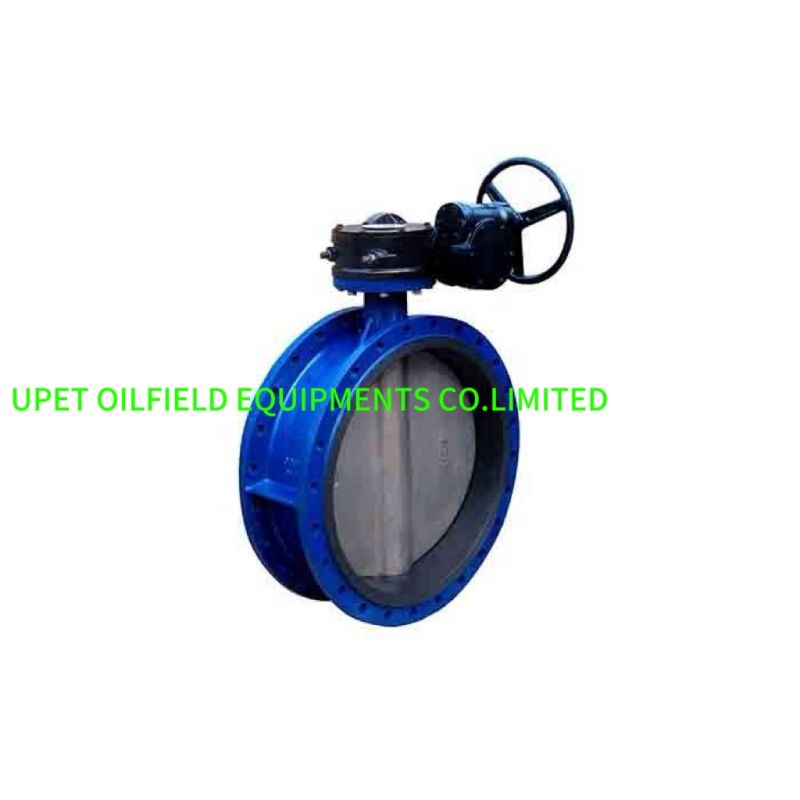

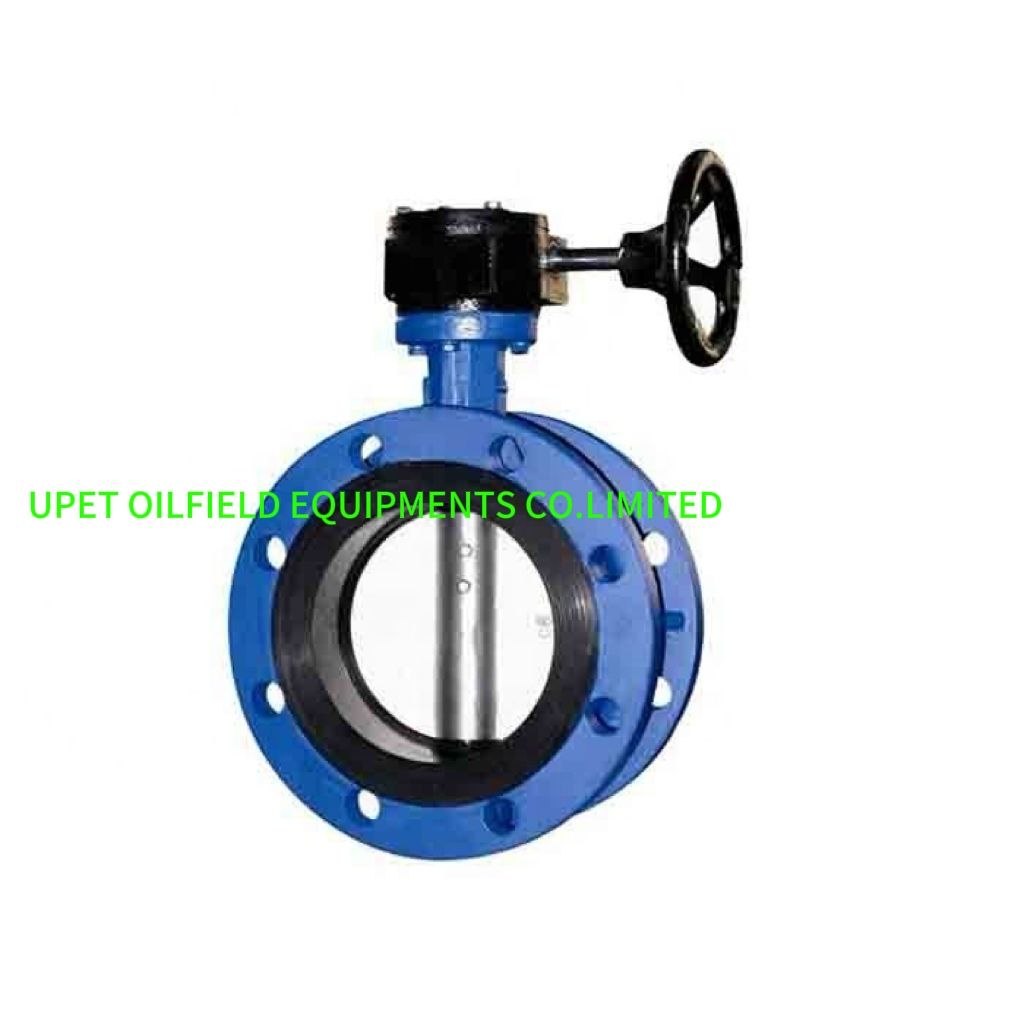

Quick Details
Type:Butterfly Valves, Flange Type , Water type , Lug type , U type , Grooved type
Place of Origin:Shandong, China
Model Number:butterfly valve MDS017
Application:General
Temperature of Media:Medium Temperature
Power:Manual
Media:Water
Port Size:DN40-DN1200mm
Structure:BUTTERFLY
Temperature range:-20-600oC
Transmission type:worm, lever
Connection Form:Flange
Coating:FBE(blue)
Nominal pressure:ANSI150-300Lb
color:blue
Working pressure:a. 1.0Mpa b. 1.6Mpa c. Class150LB-2500 LB
Temperature:Normal Temperature
Supply Ability
Supply Ability:10000 Set/Sets per Month larger orders can be provided overtime production
Packaging & Delivery
Packaging Details:ply wooden boxes outside or as per customes’s requirement
Port:Tianjin,Qingdao

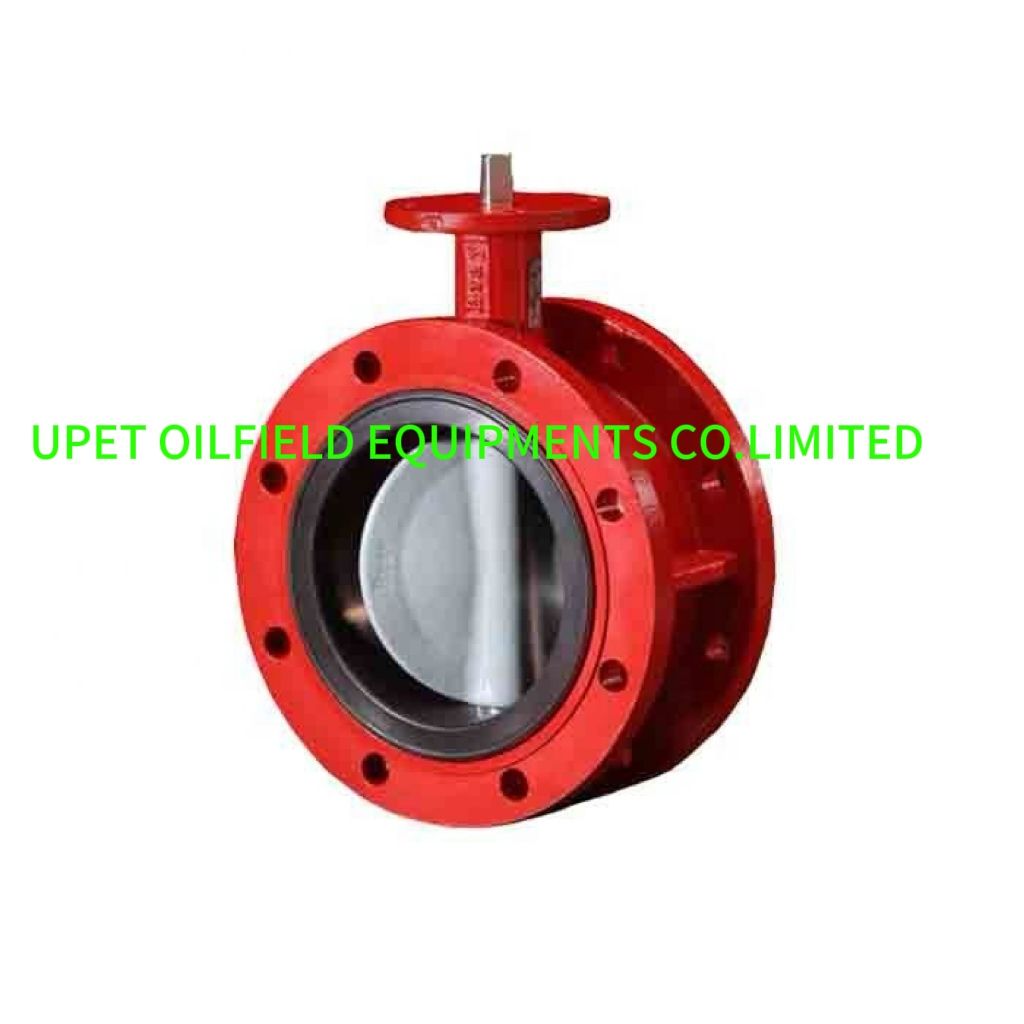

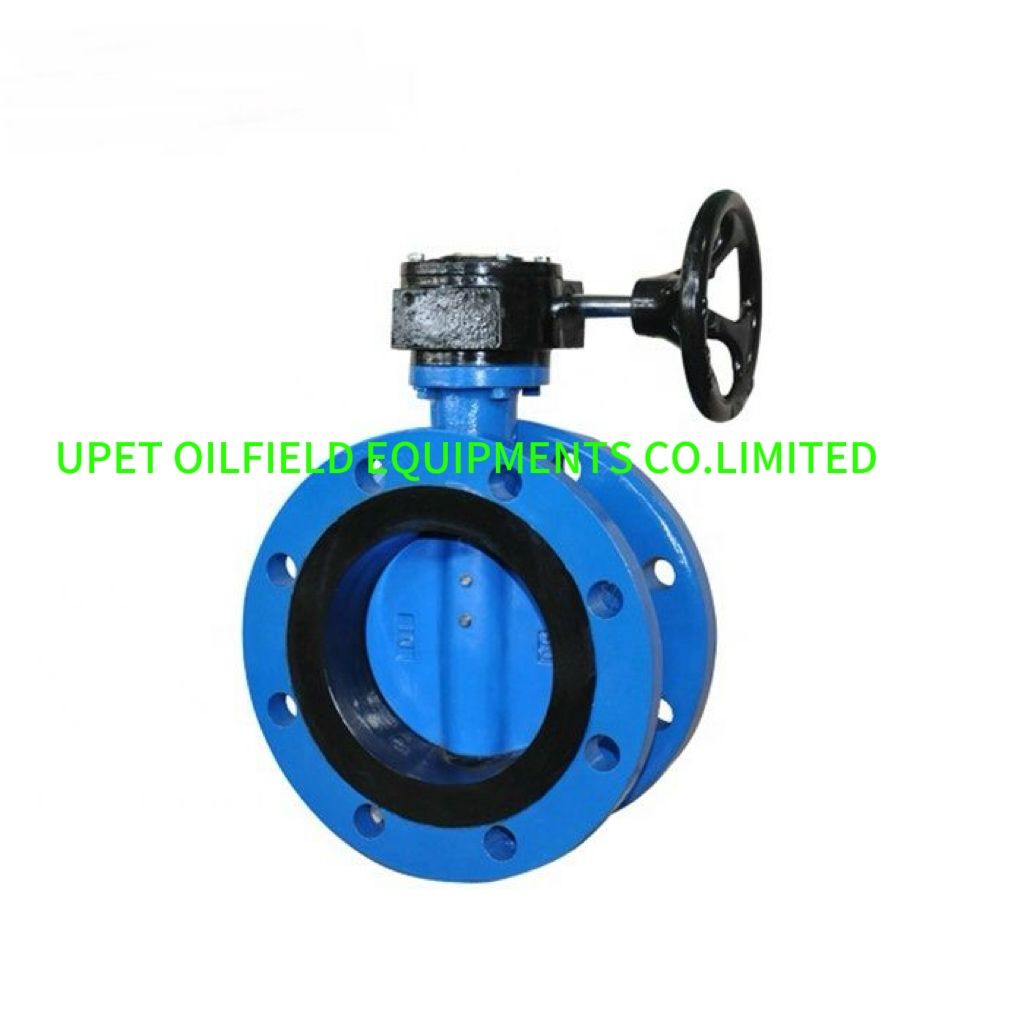

Product description
a) Standard:
Design standard conform to
ANSI/AWWA C504
Connection flange conform to
DIN PN10/16/25, ANSI B16.1,BS4504, ISO PN10/16,
JIS B2212/2213, BS 10 Table D, BS 10 Table E
Top flange conform to
ISO 5211
Face to face conform to
BS5155 Short, ISO5752(Series 13),DIN 3202 F16
Test standard conform to
API598
b)Design characters:
Correcting holes are made on flange according to standard, easy correcting during the installation.
Through-out bolt or one-side bolt used. Easy replacing and maintanance.
Shaft and disc connected by pin, torque screw or non pin, to achieve the opening and closing.
c)Performance:
Norminal Diameter:
DN40~DN1200
Norminal PressurePN(MPa):
1.0,1.6,2.0,2.5
Testing pressure(water) Ps(MPa):
Body seat:
1.5 times rated pressure
Seat test:
1.1 times rated pressure
Suitable medium:
Fresh water, sea water, gas, oils, acids, alkalis, etc
