Product Description
Quick DetailsWarranty:1 Year
After Warranty Service:Video technical support, Online support, Spare parts
Place of Origin:Shandong, China
Pressure:21MPa
Structure:vane pump
Certification:ABS CCS DNV BV LR
Weight:30KGS
Dimension(L*W*H):30*30*32CM
Material:Cast Iron
Application:Machinery
Standard or Nonstandard:Standanrd
Max Pressure:21MPa
Standard:International Standard
Color:black
Name:v/vq20 vane pump
Condition:New
Type:Hydraulic Power Units
After-sales Service Provided:Online support, Video technical support, Free spare parts
Packaging & Delivery
Selling Units:Single item
Single package size: 35X35X40 cm
Single gross weight:30.000 kg
Package Type:wooden cases, carton with foam inside
Lead Time :
| Quantity(Pieces) | 1 – 1 | 2 – 200 | >200 |
| Est. Time(days) | 7 | 20 | To be negotiated |

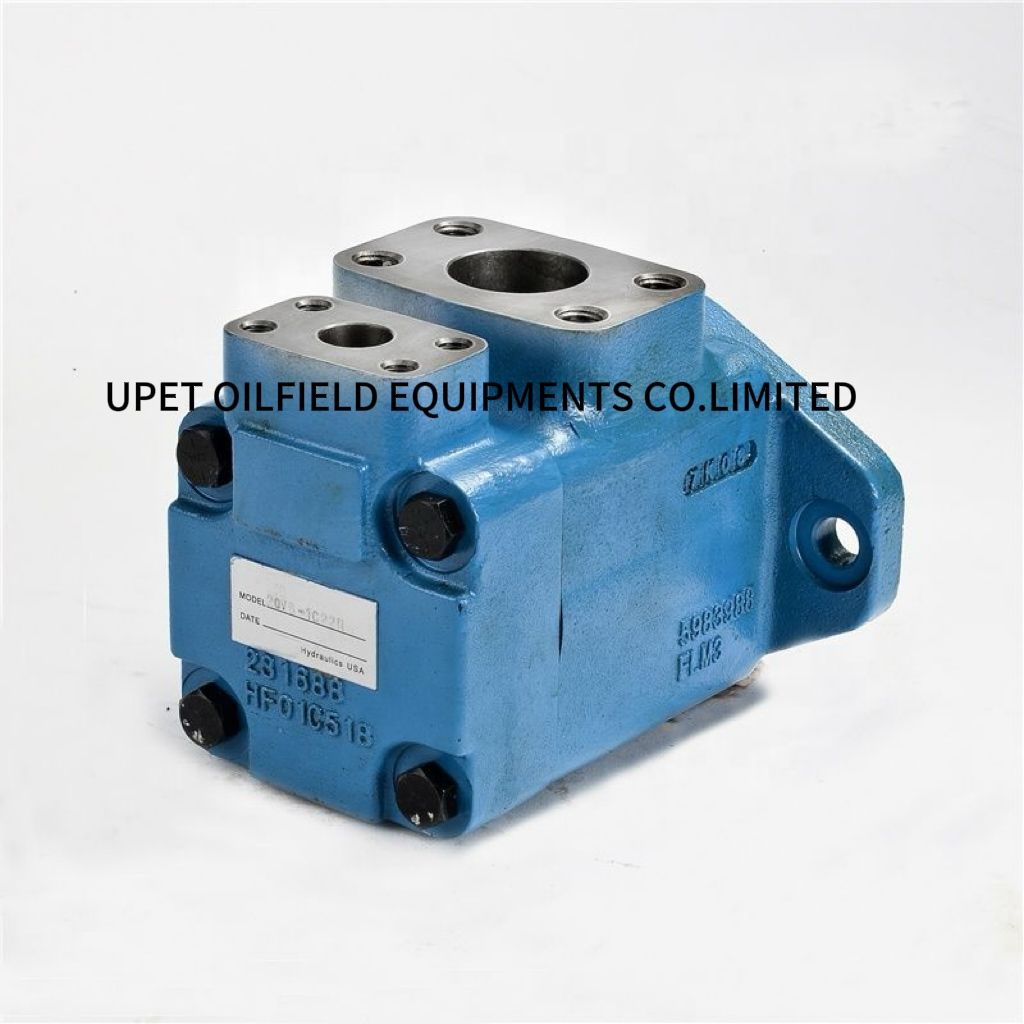

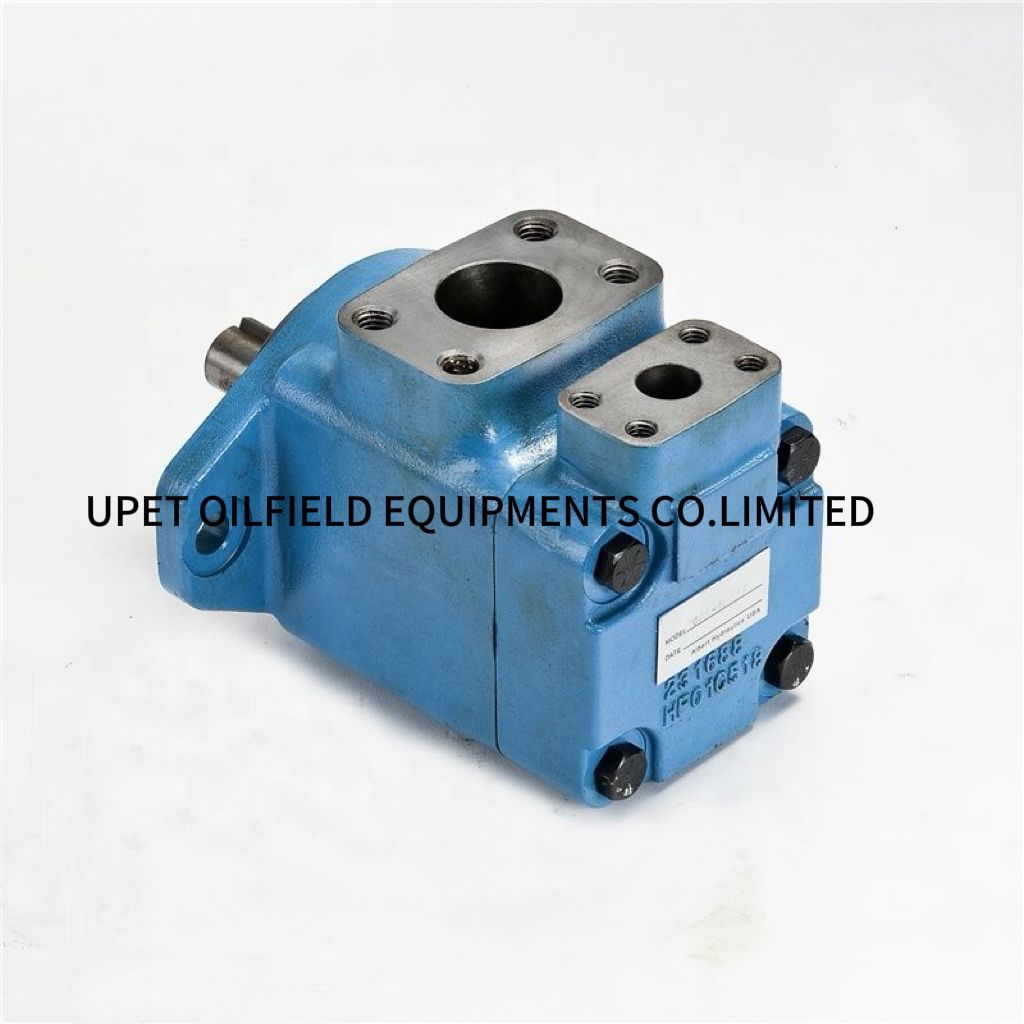

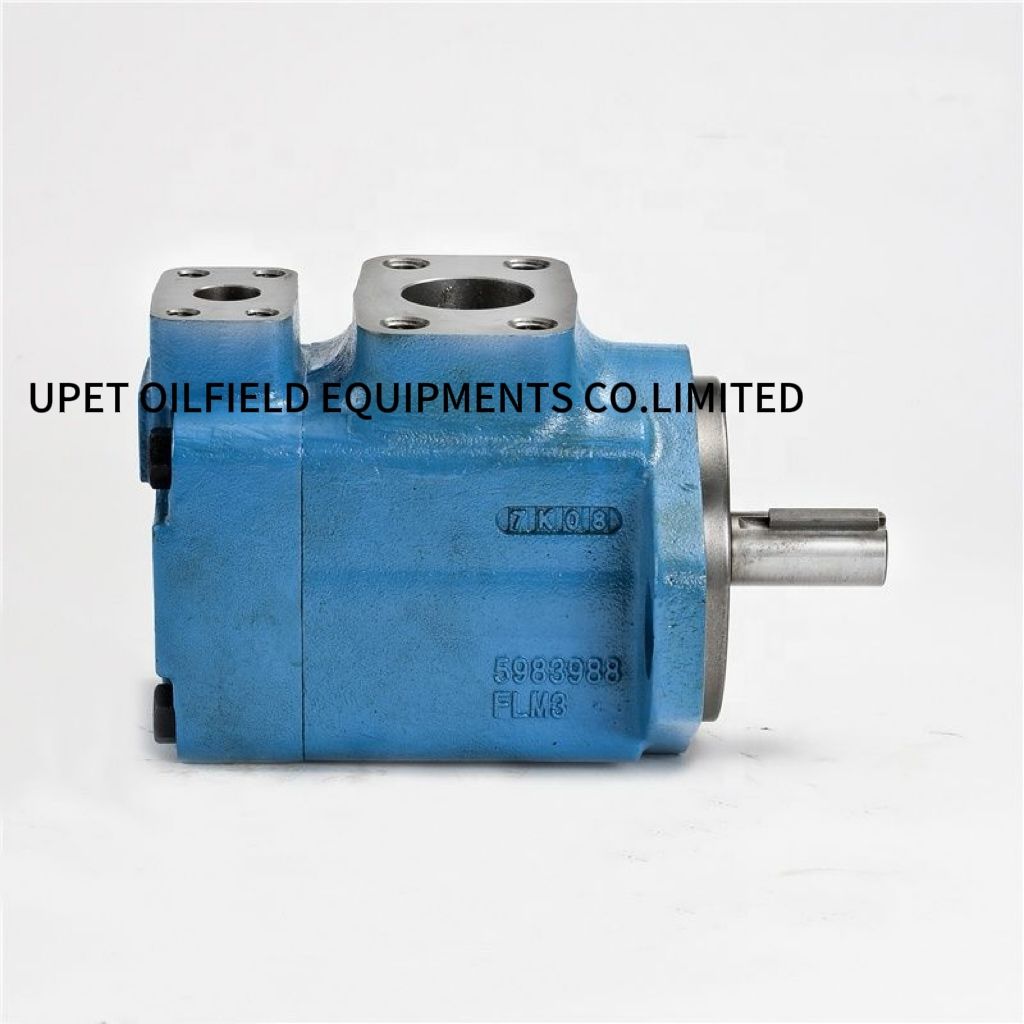

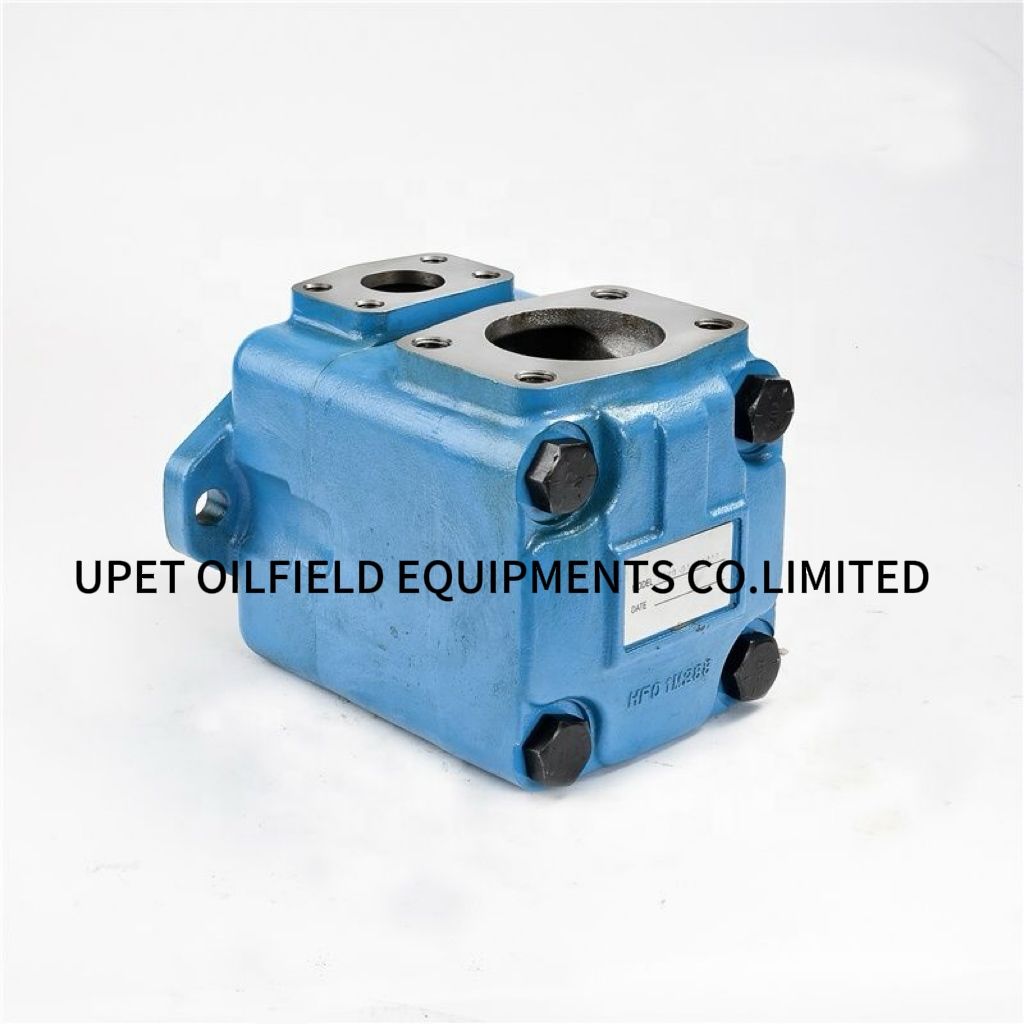

Vickers 20VQ 25VQ 35VQ 45VQ hydraulic v/vq20 vane pump
The 20V 25V 35V 45V, 20VQ 25VQ 35VQ 45VQ series pumps are designed for medium pressure industrial applications. The intra-vane cartridge design provides long
operating life, outstanding volumetric efficiency (more than 90%) and excellent serviceability. The super-quiet (as low as 62
dB(A) 12-vane system is ideal for the indoor industrial environment. The 22nd design is well known for reliability and
versatility, and is used in industrial machinery all over the world.
Eaton/Vickers 20V 25V 35V 45V, 20VQ 25VQ 35VQ 45VQ Series Vane Single Pump Features hydraulic vane pump :
Pressure balanced vane design
Modular construction
Wide range of displacements
Double, triple and through drive pump options
Eaton/Vickers 20V 25V 35V 45V, 20VQ 25VQ 35VQ 45VQ Series Vane Single Pump Benefits gasoline hydraulic vane pump :
-Low noise and long life
-Ease of repair and serviceability
-Wide range of applications
-Compact for limited space installation
Can be exchanged with the original ones completely.
Welcome your inquiry!
| Series | Size | Delivery | Max Pressure(Mpa) | Max Speed(rpm) | Min Speed(rpm) |
| 20V **20V | 2 | 7.5(0.46) | 14 | 1800 | 600 |
| 3 | 10(0.61) | ||||
| 4 | 13(0.79) | 21 | |||
| 5 | 16.5(1.01) | ||||
| 6 | 19(1.16) | ||||
| 7 | 23(1.40) | ||||
| 8 | 27(1.67) | ||||
| 9 | 30(1.85) | ||||
| 10 | 32(1.95) | ||||
| 11 | 36(2.20) | ||||
| 12 | 40(2.44) | 16 | |||
| 14 | 45(2.78) | 14 | |||
| 25V 25**V **25V | 10 | 32.5(1.98) | 17.5 | 1800 | 600 |
| 12 | 39(2.38) | ||||
| 14 | 45(2.78) | ||||
| 15 | 47(2.89) | ||||
| 17 | 55(3.36) | ||||
| 19 | 60(3.66) | ||||
| 21 | 67(4.13) | ||||
| 35V 35**V **35V | 21 | 67(4.13) | 17.5 | 1800 | 600 |
| 25 | 81(4.94) | ||||
| 30 | 97(5.91) | ||||
| 32 | 101(6.16) | ||||
| 35 | 112(6.83) | ||||
| 38 | 121(7.37) | ||||
| 45V 45**V **45V | 42 | 138(8.31) | 17.5 | 1800 | 600 |
| 45 | 147(8.95) | ||||
| 50 | 162(9.85) | ||||
| 57 | 181(11.05) | ||||
| 60 | 193(11.75) | ||||
| 66 | 212(12.93) | ||||
| 75 | 237(14.46) | 14 |
