Product Description
spray pump is single stage single suction horizontal cantilever centrifugal pump. used for oil drilling pump steel sleeve,piston spray,cooling,lubrication, can also be used to deliver water which below 80 ºC,or containing a small amount of sediment . spray pump and oil-drilling pump supporting use belt transmission somesites can also be directly with motor.Function
Impeller rotates generating centrifugal force,
and the spray pipe assembly takes the water in the water tank to the cylinder liner,
cooling and lubrication to the cylinder liner and piston.
Feature
1. It has reached the world standard of the same type of products, and is very much welcomed on domestic and foreign markets.
2. It can operate normally both in positive direction and negative direction on change .
3. It is smooth in operation, convenient in installation, adjustment and maintenance.
4.This pump is a patented product.
Type: ordinary spray pump and electric spray pump
| Model | Flow, m3/h | Rotate speed, rpm | Dimensions | Weight, Kg | Power, Kw | Delivery head, m | |

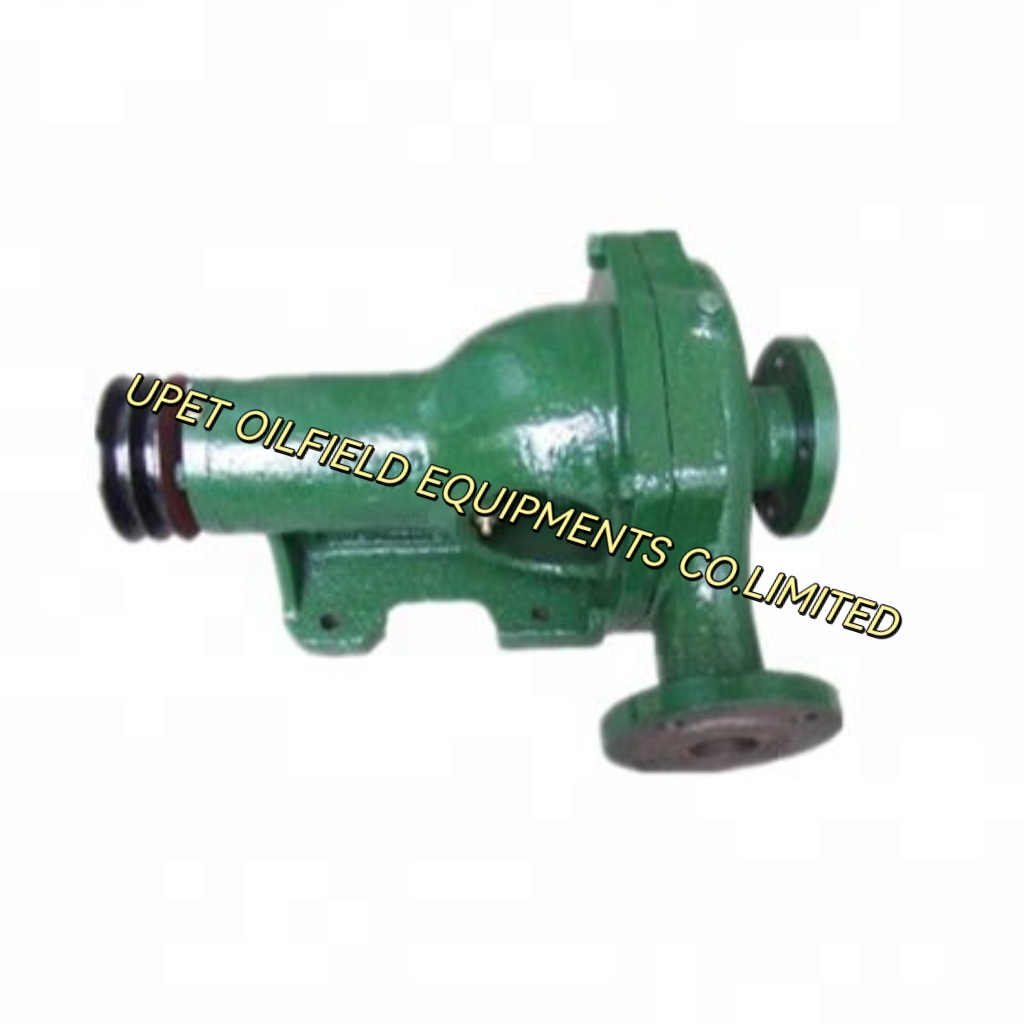

| ordinary spray pump | 32PL | 6.5-9.0 | 1460 | 400×335×260 | 28 | — | 7 |

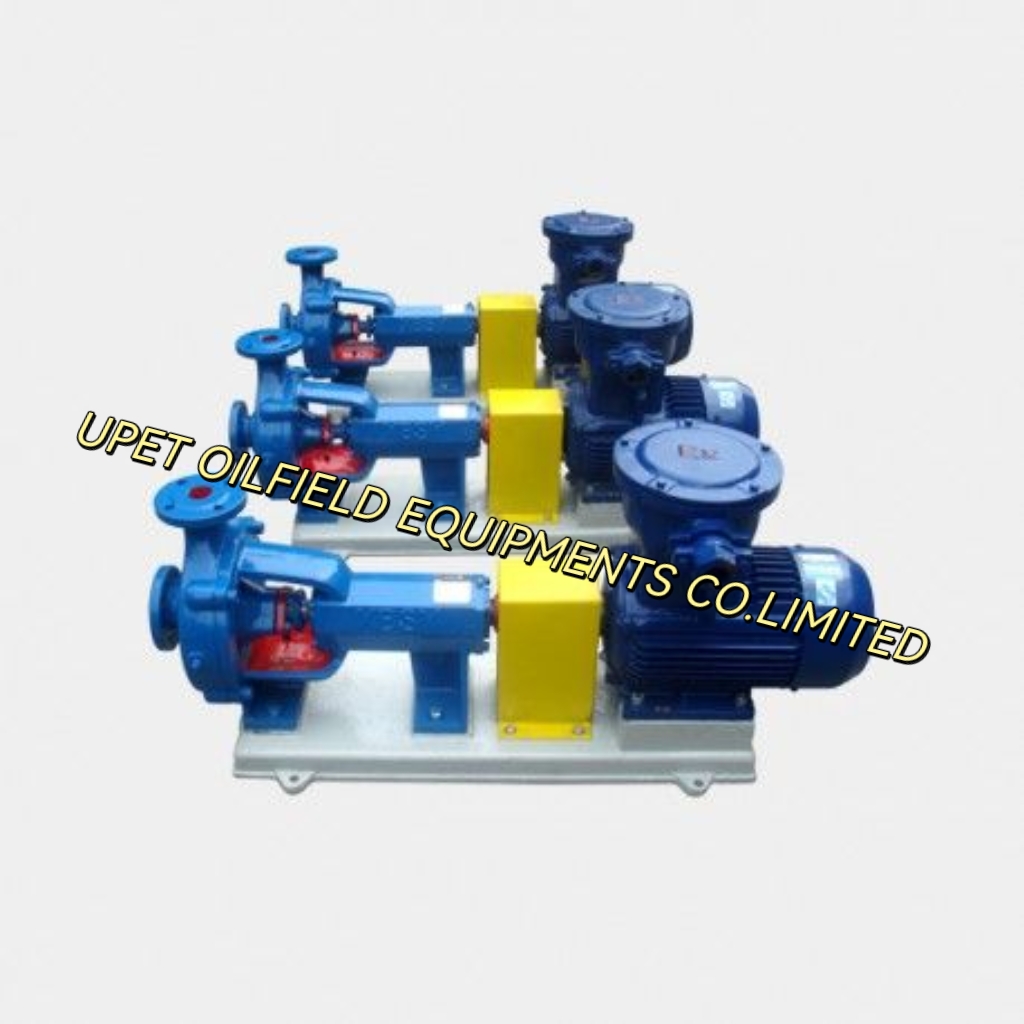

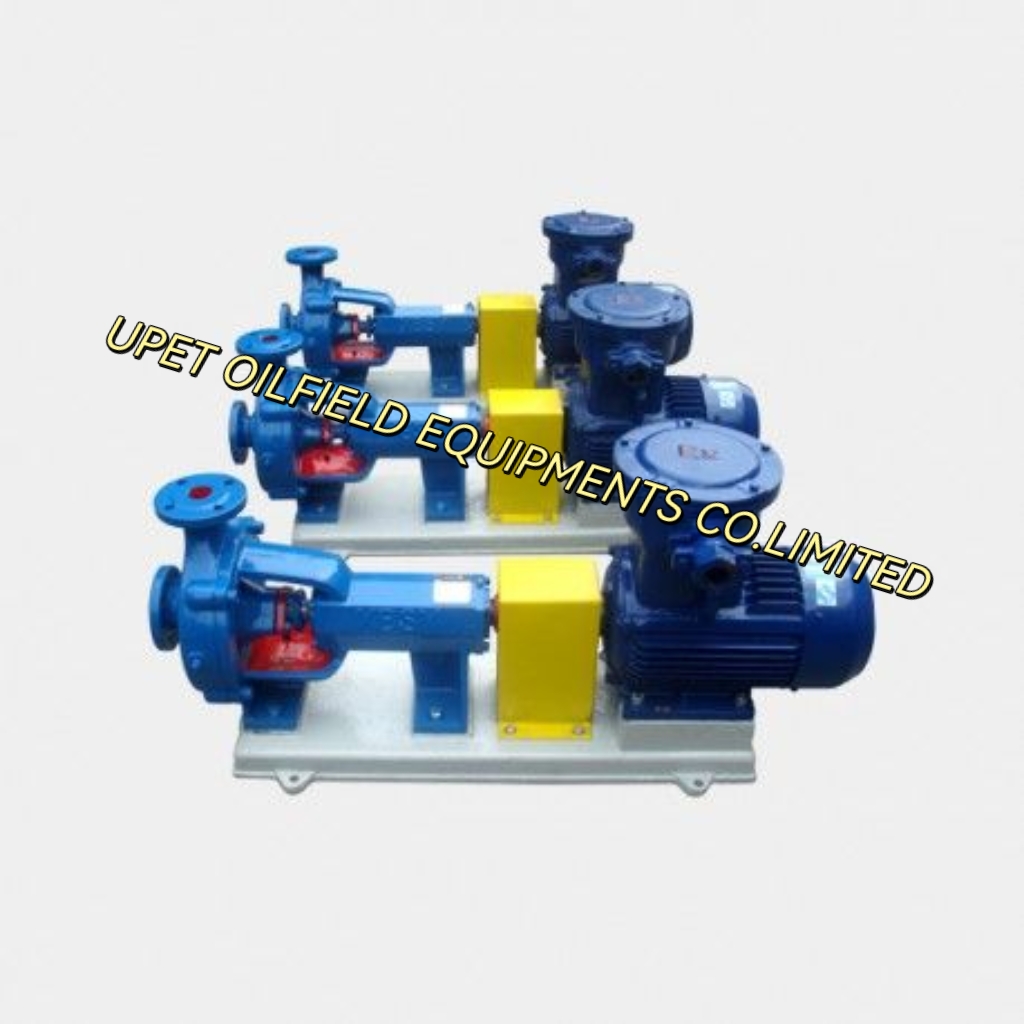

| Electric spray pump | 32PL(D) | 7.5 m3/h | — | 967×294×400 | — | 2.2 | 10 |
The parameters
| Model | Flow ,m3/h | Lift ,m | Rotation speed ,rpm | Efficiency ,% | Power,kw | ||
| Shaft Power | Motor Power | ||||||
| 32SB180J-2.2 | 7.5 | 10 | 1420/1750 | 48 | 0.55 | 2.2 | |
| 32SB180J-4 | 9 | 14 | 1750 | 48 | 0.93 | 4 | |
| 40SB180J-3 | 15 | 10 | 1420/1750 | 53 | 0.78 | 3 | |
| 32PL | 7.5 | 10 | 1420 | 48 | 0.55 | – | |
| 32PL(B) | 7.5 | 10 | 1420 | 48 | 0.55 | – | |
