Quick Details
Type:Drilling Mud Pump Used Piston rod
Product Name:Mud Pump Used Piston rod
Certification:API 7K ISO 9001:2008
Application:Oilfiled;Mud pump part
Pressure:High Pressure
Place of Origin:Shandong
Power:Hydraulic
Supply Ability
Supply Ability:5000 Set/Sets per Month
Packaging & Delivery
Packaging Details:Wooden Box
Port:QINGDAO

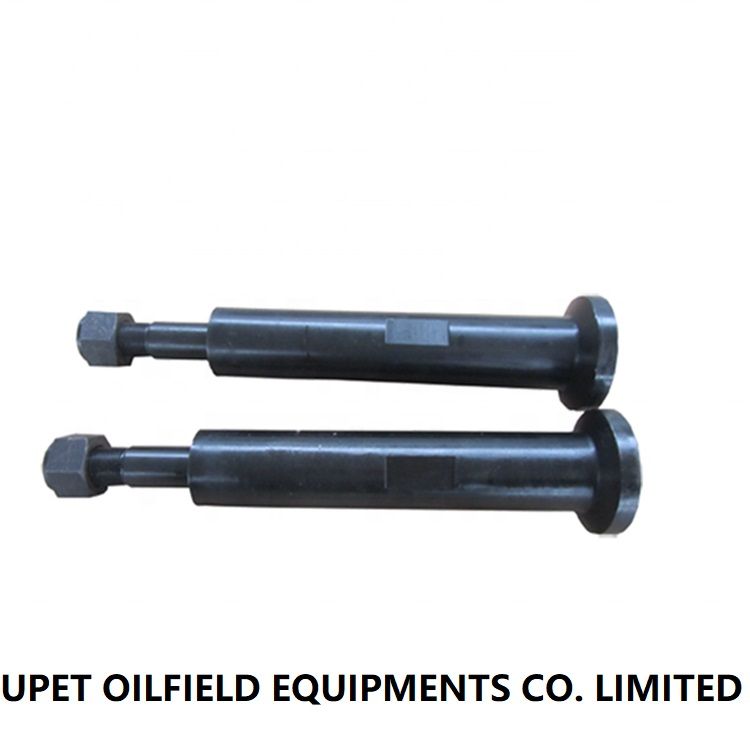

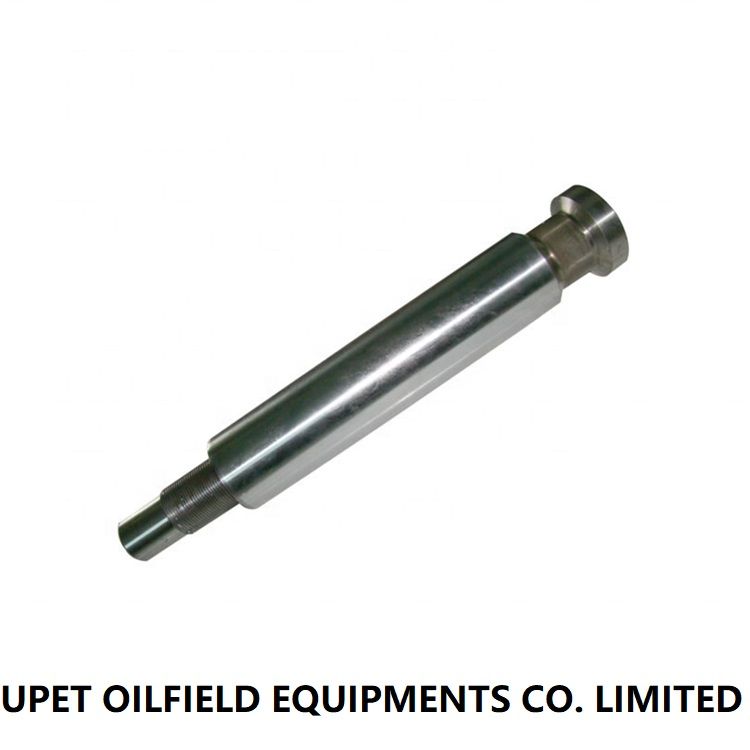

Mud pump spare part Piston rod
Piston rod is the main parts, which connect mud pump power end and hydraulic end. The material is 42 CrMo. We can provide piston rods with various kinds of specifications of F series, 3NB series, PZ series, and others.
Piston Rod For Mud Pump Spare Part
Specification | Fig. No. | φ | L | Thread | Weight (Kg) |
| F500 | AH35001-05.18A | 66.68 | 457.9 | M24 | 7 |
| F500 | AH35003-05.06 | 1 1/2-8UN | |||
| F800 | AH34001-05.02A | 88.9 | 485 | M39×3 | 9.6 |
| F800 | AH34001-05.02 | 1 1/2-8UN | |||
| F1000 | AH33001-05.21A | 101.6 | 534 | M39×3 | 13.5 |
| F1000 | AH33001-05.02 | 1 1/2-8UN | |||
| F1300F1600 | AH36001-05.19A | 120.65 | 550 | M39×3 | 14 |
| F1300F1600 | AH36002-05.05 | 1 1/2-8UN | 17 |

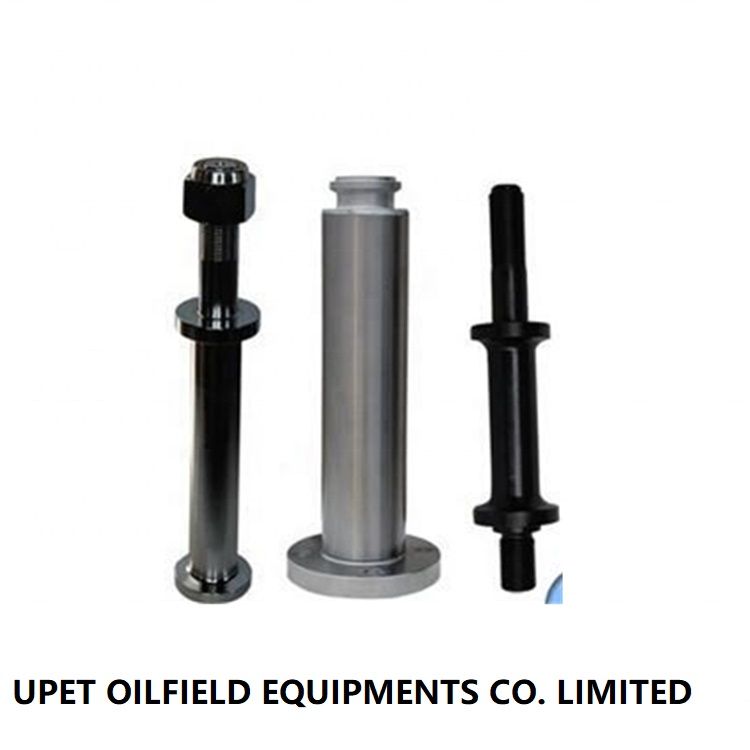

A full line of Piston Rods and Pony Rods/Extension Rods are available for various pumps.
Piston Rod use high strength alloy steel and after heat treatment,it appear with high strength, non-deforming and corrosion resistant.
Extension Rod is the important part for pump transmit power from the power end to the fluid end. The extension rod is made by high-quality structural alloy steel with specified technology, after heat treatment, the extension rod appear with high mechanical performance, very smooth surface, wear resistant and corrosion resistant after heat treatment and chrome plating.
China F series Mud Pump: F-500, F-800/1000, F-1300/1600
China 3NB series Mud Pump: 3NB-350, 3NB-500, 3NB-600, 3NB-800, 3NB-1000, 3NB-1300, 3NB-1600
EMSCO:F-350, F-500, F-650, F-800, F-1000, FA-1300, FB-1300, FA-1600, FB-1600
GARDNER DENVER: PZ-7, PZ-8/9, PZ-10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP
NATIONAL: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400
OILWELL:A-560/600-PT,A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
IDECO: T-500, T-800, T-1000, T-1300, T-1600
