Quick Details
Place of Origin:China
Model Number:JQHSB50*12
Power Source:Pneumatic
Application:CRANES
Capacity:50KN
Pressure of Compressed Air:0.8mpa
Rated Pull Force:10ton
Rated Cable Speed:20m/min
Normal Power:30kw
Diameter of Cylinder:160mm
Cylinder number:5pcs
Air Consumption:0.4m3/s
Diameter:300mm
Width:620mm
Wheel Rim Diameter:600mm
Supply Ability
Supply Ability:
1000 Set/Sets per Month air winch 5 ton/pneumatic air winch
Packaging & Delivery
Packaging Details:
carton box, plastic bags, wooden cases or as your requirement
air winch 5 ton/pneumatic air winch
Port:Qingdao
Lead Time :
| Quantity(Sets) | 1 – 1000 | >1000 |
| Est. Time(days) | 15 | To be negotiated |
Product Description

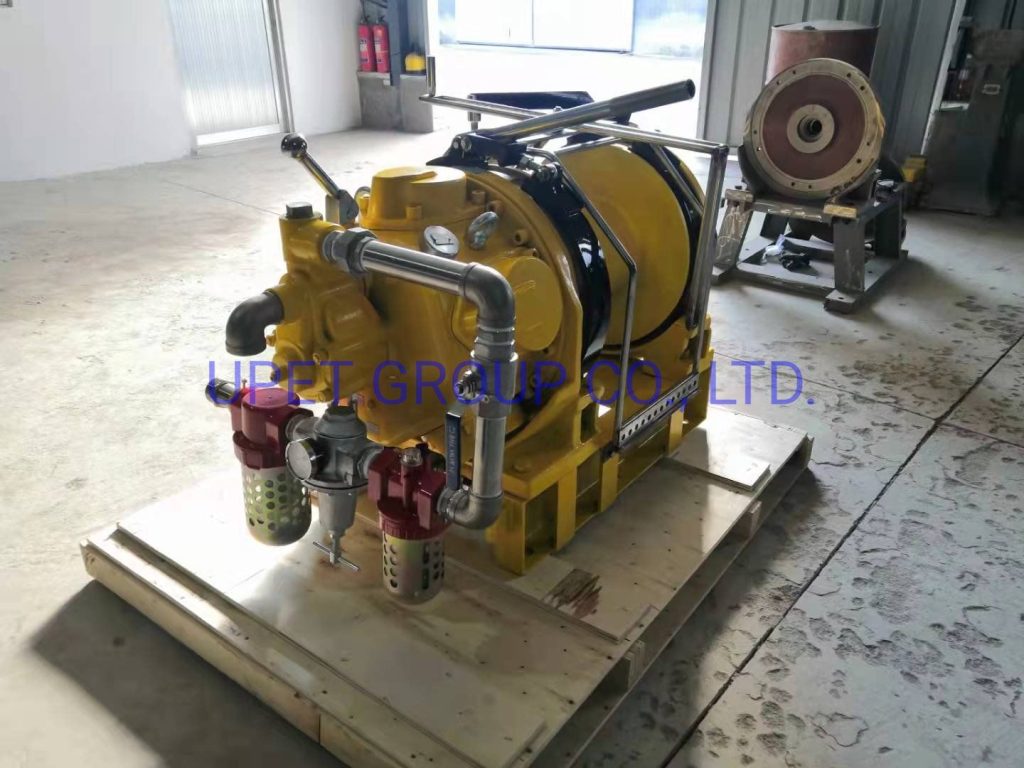

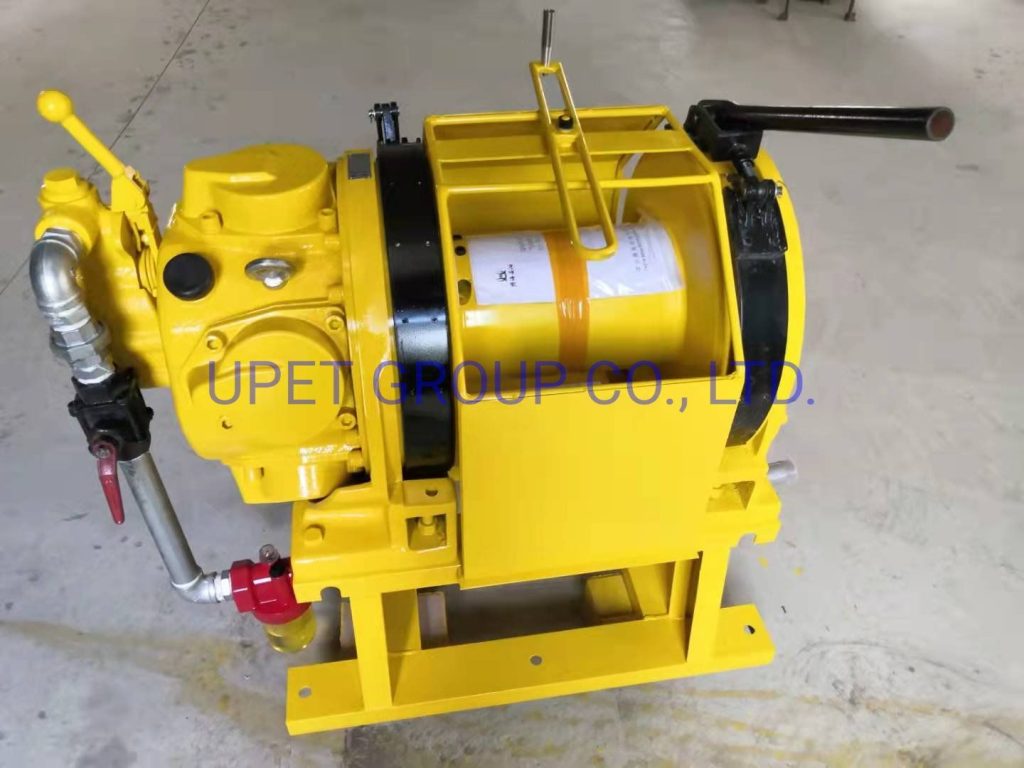

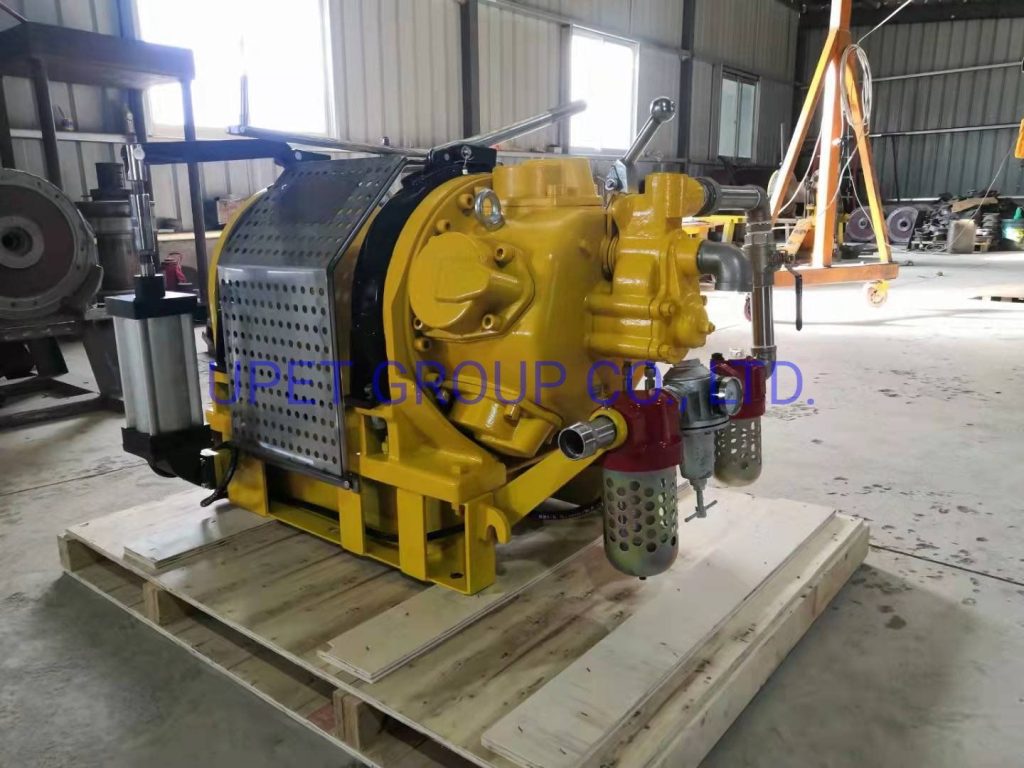

The JQHSB50*12 Rotary-base Double-braking Air Winch adopts compressed air as power to drive the TMH17 piston air motor, transferring torque to drum through the second Gear Reducer. By operating manual diversion valve on the motor, the winch can perform hoisting, lowering and stopping actions to the wire rope. Considering security, it is specially designed with hand and foot double manual brakes for fear of unexpected accidents. The Double-braking Air Winch is especially fit for hauling, lifting and other work in mines, construction engineering sites, platforms of oilfields off-sea and inland, etc. (Its maximum load is up to 5 ton) The roatry-base make it flexible on the oilfield floor, and the pin-base assure its safety.
Features:
1. Compact in size and light in weight, portable to move and easy to install;
2. Simple and reliable operation with little noise;
3. Stable in inflammable, explosive, wet, damp and other extremely operating conditions;
4. Low maintenance relieves your anxiety and assures you to use it freely.
5. High starting torque ensures it starting with load and performing hoisting, lowering and stopping actions easily;
6. Especially fit for hauling, lifting and other work in mines, construction engineering sites, platforms of oilfields, etc;
7. The Normal Pull Force can be tailor-made to your requirement;
8. Good after-sale service with high quality.
| Item | Parameter | Unit | |
| model | JQHSD-50*12 Anti-low-temperature Double Braking Air Winch | — | |
| Rated Working Pressure | 0.6-0.8 | Mpa | |
| Rated Traction Force | 50 | KN | |
| Wire Rope Velocity | 12 | M/MIN | |
| Pneumatic Piston Motor | Model | TMH17 | — |
| Rated Power | 17 | Kw | |
| Cylinder Number | 5 | Pcs | |
| Cylinder Diameter | 130 | mm | |
| Air Consumption | 247 | L/S | |
| Drum | Number | 1 | PCS |
| Diameter | 222 | mm | |
| Width | 335 | mm | |
| Wheel Rim Diameter | 465 | mm | |
| Rope Content | 120 | m | |
| Wire Rope Diameter | 15.875 | mm | |
| Air Inlet Diameter | 31.75 | mm | |
| Dimension (Length* Width* Height) | 1200*920*989 | mm | |
| Weight(KGS) | 498 | KG | |
