Double Packed Polished Rod Stuffing Box
Quick DetailsCondition:NewWarranty:1.5 yearsApplicable Industries:Energy & Mining, oilfieldPlace of Origin:Shandong, ChinaType:stuffing box, alloy steelMachine Type:Drilling ToolCertification:APIMaterial:Carbon Steel, 4130Processing Type:Forging, ForgingUse:Well DrillingApplication:oilfieldThread:EUE NUEtemperature:highSize:1 1/4-1 1/2 inmaterial:Ductile Iron 65-45-12 , or Casting ironPARTS:High Strenght Bolts, Cone packing, V packing, O-ringsQuality:Excellent

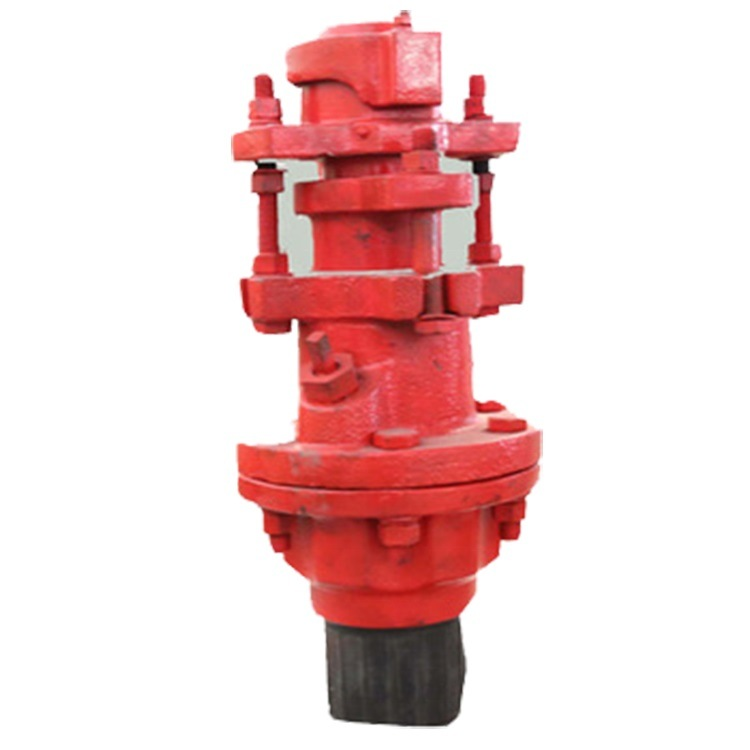

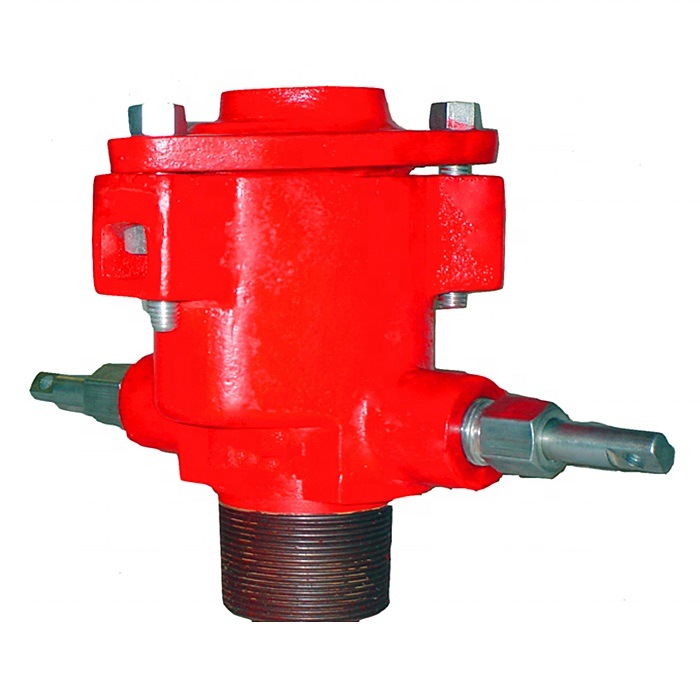

Double Packed Polished Rod Stuffing Box
Stuffing box to be installed at Pumping Well Head and seal off the Polished Rod with cone packing
and free floating lubricated upper section to assure self alignment and packing burn out, designed
to seal off leakage by fluid pressure.
Cone-style stuffing box is available for Single Pack and Double Pack stuffing box as blow, Using
1045/4130 casting steel or ductile iron as per customer demand, for cap, glands, body and base,
bottom are API gauged threads of tubing EUE or LP. They are suitable for rod sizes 1″, 1.1/8″,
1.1/4″, 1.1/2″ and 1.3/4″. Simple structure, easy installation and convenient maintenance, and they
can make sure the sealing effectiveness through its single packing or double packing or even triple
packing.
