Mud Pump Liner for F-500,F-800,F-1000,Fb-1300,F-1600,Pz-7,Pz-8,Pz-9,Pz-10,Pz-11,12p160,3nb-1000c,T-1000,T-1300 Bomco/Ideco/Emsco/Gardner Denver/Tsc etc
China F series Mud Pump: F-500, F-800/1000, F-1300/1600
China 3NB series Mud Pump: 3NB-350, 3NB-500, 3NB-600, 3NB-800, 3NB-1000, 3NB-1300, 3NB-1600
EMSCO:F-350, F-500, F-650, F-800, F-1000, FA-1300, FB-1300, FA-1600, FB-1600
GARDNER DENVER: PZ-7, PZ-8/9, PZ-10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP
NATIONAL: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400
OILWELL:A-560/600-PT,A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
IDECO: T-500, T-800, T-1000, T-1300, T-1600
And other brand liners for WIRTH, OPI, ELLIS WILLIAMS, WHITE STAR etc.

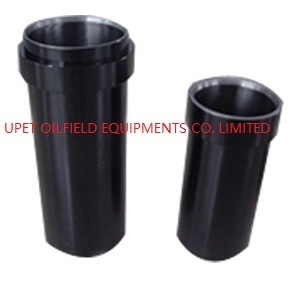

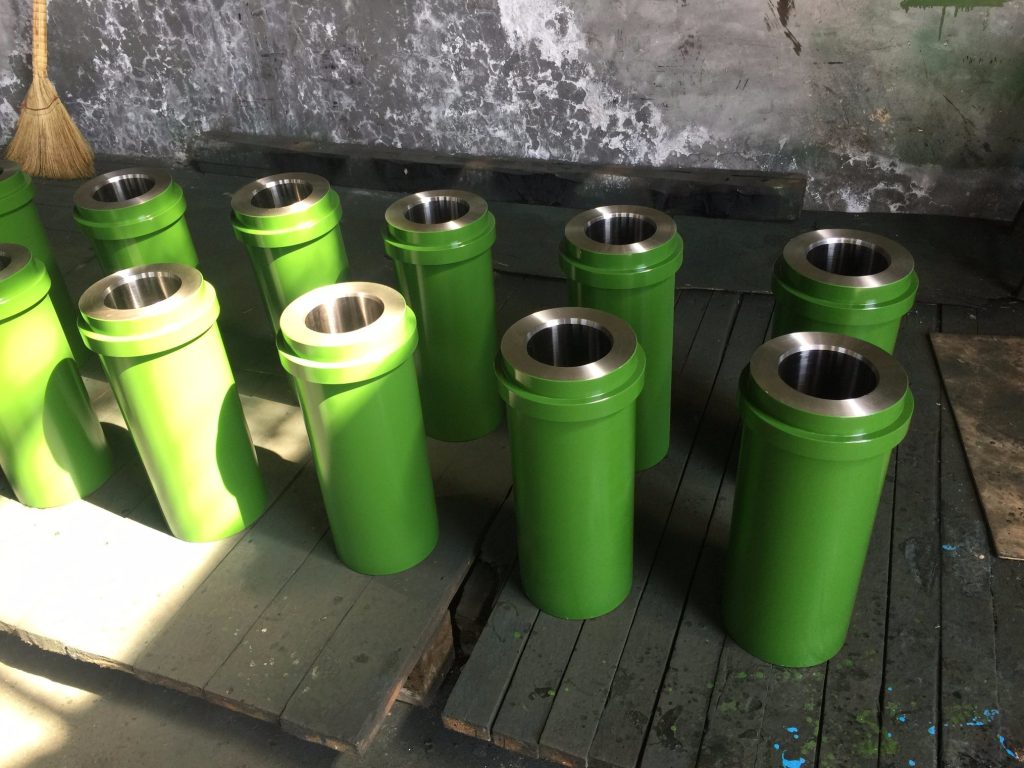

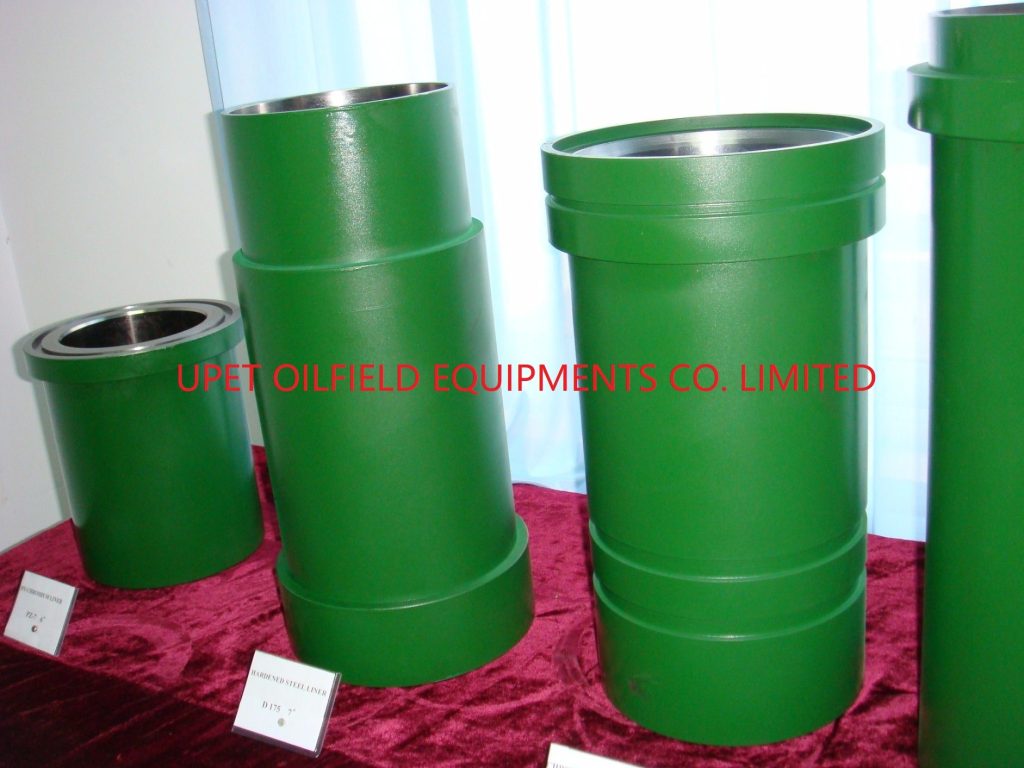

Bi-metal Liners
The bi-metal liner is composed of two layers and fixed tightly. The outer sleeve is forged steel with abrasion resistance, it adapts the technology of centrigugal forging; the inner sleeve is high chromium iron with wear&corrosion resistance, after heat treatment, the hardness of it can reach to a lever of 62 RC.
The bi-metal liners produced by us strictly control the tolerance, assure the easy installation, inner sleeve is highly polished with abrasion&corrosive resistance, can used in various bad working environment with longer service life.
Liner Outer Sleeve: 45#forged steel, tensile strength is σb>610MPa, yield strength is σs>450MPa, ,elongation hardness is §>17%,hardness is HRC180-200
