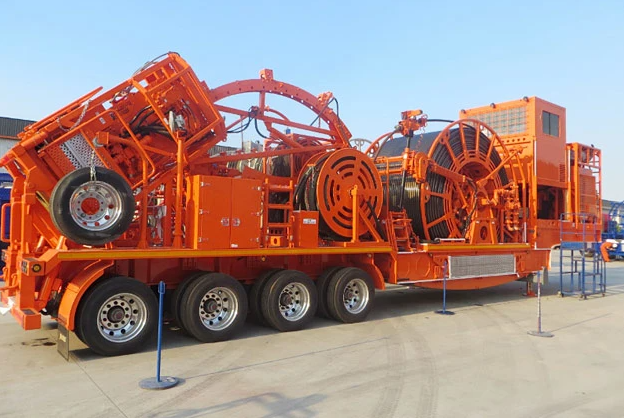

Coiled Tubing Unit

Product Description

Customized design and configuration to meet offshore lifting and land transportation;
Quick-in-drum design suitable for small offshore platform lifting;
DNV, BV certification, etc. available to meet Zone II applications;
BOP backup system to meet customer requirements in case two BOPs are needed;
Skid-in-skid module more suitable for offshore applications;
Ports for connecting with the yard spooler and tubing blower designed to extend equipment functions.
Category:

Description

Our blenders are designed to meet the requirements of a vast array of jobs ranging from low-rate gel fracs to high-rate slick water jobs without modification. Units are manufactured to be easy to operate and maintain while delivering the most reliable operation, precise automated control, and a wide range of operating flow rates. We manufacture blenders in trailer-, truck-, and skid-mounted designs to meet your specific global requirements.

Features/Benefits

  • Conventional designs rated up to 135+ BPM, with twin and slip-stream designs rated up to 150+ BPM
  • Multiple liquid and dry chemical configurations
  • Equipped with FRACTRAC or ECAMS systems for accurately proportioning proppant and chemicals for automated blender options
  • Simplified controls for ease of operation available in multiple languages
  • Direct communication with other units (LAS, hydration, DAS)
  • Field-proven tub designs (open and closed) for mixing high-concentration fracturing slurries
  • Multiple auger configurations to meet customer specifications
  • Maintenance-friendly design
  • Cold and hot weather options available
  • Dual- or single-side manifolds



Features

  • Equipment mounted on two trucks to improve flexibility for harsh road conditions in southwest China and northwest China;
  • Main truck adopts frame beam to improve load capacity;
  • Dropped chassis frame allows reel to carry tubings of large diameter (≥2″); quick-in-drum design permits safe and convenient change of reel;
  • BOP backup system to meet the requirements in case two BOPs are needed;
  • Auxiliary truck equipped with the hydraulic tubing feed system to reduce labor on site;
  • Ports for connecting with the yard spooler and tubing blower designed extending equipment functions.

Specifications

Model LGC450 LGC360 LGC270 LGC180
Chassis Main Truck Mercedes-Benz / MAN / Sinotruck,
Auxiliary Truck Mercedes-Benz / MAN / BEIBEN / Sinotruck
Power Source Chassis Engine
Tubing Reel Model LGGT 148-78-86 LGGT 148-78-86 LGGT 120-72-78 LGGT 110-72-78
Tubing Reel Capacity 2″-21,650 ft
(1 3/4″-28,990 ft)
2″-6,600 m
(1 3/4″-8,800 m)		 2″-21,650 ft(1 3/4″-28,990 ft)
2″-6,600 m

(1 3/4″-8,800 m)

 1 1/2″-20,670 ft
(1 3/4″-14,100 ft)

1 1/2″-6,300 m
(1 3/4″-4,300 m)

 1 1/4″-22,000 ft
(1 1/2″-14,440 ft)
1 1/4″-6,700 m
(1 1/2″-4,400 m)
Injector Model ZRT-100K ZRT-80K ZRT-60K ZRT-40K
Continuous Pulling Capacity 100,000 lb (45,000 kg) 80,000 lb (36,000 kg) 60,000 lb (27,000 kg) 40,000 lb (18,000 kg)
Continuous Snubbing Capacity 50,000 lb (22,500 kg) 40,000 lb (18,000 kg) 30,000 lb (13,600 kg) 20,000 lb (9,000 kg)
Well Control Equipment 3 1/16″ / 4 1/16″ / 5 1/8″
Max. Working Pressure 10,000 psi (69 MPa) /15,000 psi (103.5 MPa)
Crane (Optional) 18 t
