API Mud Pump Spare Part Valve and Valve Insert Valve Assembly Emsco/Gardner Denver/Ideco/Nationai/Oilwell/Qz

Description

Quick Details
Model Number:F1000
Place of Origin:Shandong, China
Pressure:High Pressure
Structure:PISTON PUMP
Standard or Nonstandard:Standard
Theory:Rotary Pump
Product name:API Mud Pump Spare Part Valve And Valve Insert Valve Assembly
Certificate:ISO API
Color:Customer Specifications
valve seat:20CrMnTiH
Application:Oilfield, oilfield
Usage:Oil
Power:Hydraulic
Fuel:Diesel

Supply Ability
Supply Ability:1000 Piece/Pieces per Month API drilling rig mud pump valve body NBR insert valve assembly

Packaging & Delivery
Packaging Details:iron box mud pump valve body
Port:Qingdao

Product Description

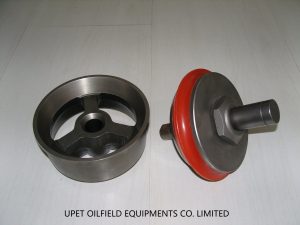

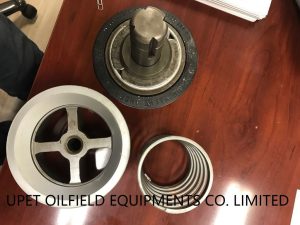

our API  drilling rig mud pump valve body  NBR insert valve assembly

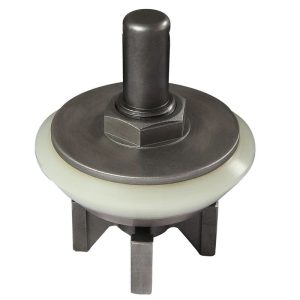

1) Stem-guided Valves& Cross-arms Seats

Stem-guided valve and cross-arms seat features an extra wide metal to metal seal on the valve flange. The serrated upper surface on the valve gives a longer non breathing seal between valve body and insert while the rigid seat cross-arms give greater strength and positibe sealing.

2) Three-wing valves and full open seats.

Three-wing guided valves and full open seats features greater fluid flow than four wing valves, the unibody forged valve features greater strength than traditional welded wing valve. Innovative unibody valve design eliminates snap rings, plates or keepers providing reduced maintenance by snap-on valve inserts and easy installation.

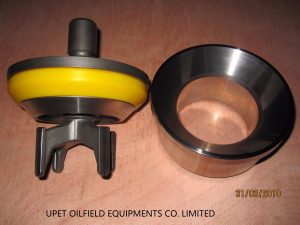

3) Double angle O-ring valve

The Double angle O-ring valve is made with a tough one-piece body to run more hours between change outs. It’s made with carburized premium alloy steel to resist wear, provide a positive seal, and help protect against wash out or damage to the pump.
